HT48C30-1

Features: ` Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V` Low voltage reset function` 25 bidirectional I/O lines (max.)` 1 interrupt input shared with an I/O line` 8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler` On-chip RC oscillator, external ...

product image

HT48C30-1 Picture
SeekIC No. : 004366793 Detail

HT48C30-1: Features: ` Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V` Low voltage reset function` 25 bidirectional I/O lines (max.)` 1 interrupt input shared with an I/O line` 8-bit programmable...

floor Price/Ceiling Price

Part Number:
HT48C30-1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage:
     fSYS=4MHz: 2.2V~5.5V
     fSYS=8MHz: 3.3V~5.5V
` Low voltage reset function
` 25 bidirectional I/O lines (max.)
` 1 interrupt input shared with an I/O line
` 8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler
` On-chip RC oscillator, external crystal and RC oscillator
` 32768Hz crystal oscillator for timing purposes only
` Watchdog Timer
` 2048*14 program memory ROM
` 96*8 data memory RAM
` Buzzer driving pair and PFD supported
` HALT function and wake-up feature reduce power consumption
` 4-level subroutine nesting
` Up to 0.5s instruction cycle with 8MHz system clock at VDD=5V
` Bit manipulation instruction
` 14-bit table read instruction
` 63 powerful instructions
` All instructions in one or two machine cycles
` 24/28-pin SKDIP/SOP package

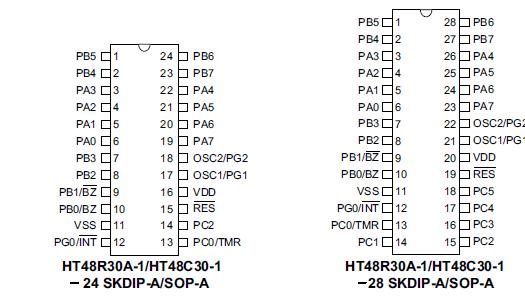

Pinout

  Connection Diagram


Specifications

Supply Voltage .........................VSS0.3V to VSS+6.0V
Storage Temperature ............................-50 to 125
Input Voltage...........................VSS0.3V to VDD+0.3V
Operating Temperature...........................40 to 85

Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may
cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT48R30A-1/HT48C30-1 are 8-bit high performance, RISC architecture microcontroller devices specifically designed for multiple I/O control product applications. The mask version is fully pin and functionally compatible with the OTP version HT48R30A-1 device.

The advantages of low power consumption, I/O flexibility, timer functions, oscillator options, HALT and wake-up functions, watchdog timer, buzzer driver, as well as low cost, enhance the versatility of these devices HT48C30-1 to suit a wide range of application possibilities such as industrial control, consumer products, subsystem controllers, etc.
