HT48C50-1

Features: ` Operating voltage: fSYS=4MHz: 2.4V~5.5V fSYS=8MHz: 4.5V~5.5V` Low voltage reset function`35 bidirectional I/O lines (max.)`1 interrupt input shared with an I/O line`8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler`16-bit programmable timer/event coun...

product image

HT48C50-1 Picture
See larger image
SeekIC No. : 004366795 Detail

HT48C50-1: Features: ` Operating voltage: fSYS=4MHz: 2.4V~5.5V fSYS=8MHz: 4.5V~5.5V` Low voltage reset function`35 bidirectional I/O lines (max.)`1 interrupt input shared with an I/O line`8-bit programmable ti...

HT48C50-1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT48C50-1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage:
    fSYS=4MHz: 2.4V~5.5V
    fSYS=8MHz: 4.5V~5.5V
` Low voltage reset function
` 35 bidirectional I/O lines (max.)
` 1 interrupt input shared with an I/O line
` 8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler
` 16-bit programmable timer/event counter and overflow interrupts
` On-chip RC oscillator, external crystal and RC oscillator
` 32768Hz crystal oscillator for timing purposes only
` Watchdog Timer
` 4096x15 program memory ROM
` 160x8 data memory RAM
` Buzzer driving pair and PFD supported
` Halt function and wake-up feature reduce power consumption
` 6-level subroutine nesting
` Up to 0.5s instruction cycle with 8MHz system clock at VDD=5V
` Bit manipulation instruction
` 15-bit table read instruction
` 63 powerful instructions
` All instructions in one or two machine cycles
` 28-pin SKDIP and 40-pin DIP package


Pinout

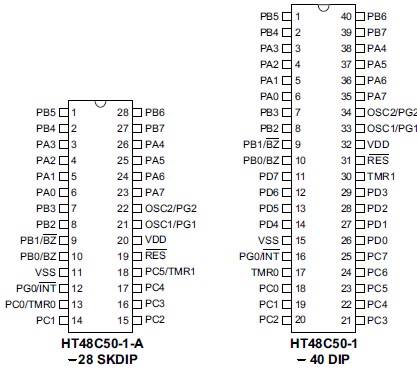

Connection Diagram


Specifications

Supply Voltage ..............VSS-0.3V to VSS+5.5V
Input Voltage ................VSS-0.3V to VDD+0.3V
Storage Temperature................-50 to 125
Operating Temperature ..............-40 to 85

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The device HT48C50-1 is an 8-bit high performance RISC-like microcontroller designed for multiple I/O product applications. The device is particularly suitable for use in products such as remote controllers, fan/light controllers, washing machine controllers, scales, toys and various subsystem controllers. A HALT feature is included to reduce power consumption.
