HT49C10

Features: ` Operating voltage: 2.2V~5.2V`Eight bidirectional I/O lines`Six input lines`Two external interrupt input`8-bit programmable timer/event counter withPFD(programmablefrequencydivider)`Watchdog timer`On-chip crystal and RC oscillator`1Kx14 program memory ROM`64x8 data memory RAM`Real Time ...

product image

HT49C10 Picture
See larger image
SeekIC No. : 004366855 Detail

HT49C10: Features: ` Operating voltage: 2.2V~5.2V`Eight bidirectional I/O lines`Six input lines`Two external interrupt input`8-bit programmable timer/event counter withPFD(programmablefrequencydivider)`Watch...

HT49C10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT49C10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 2.2V~5.2V
` Eight bidirectional I/O lines
` Six input lines
` Two external interrupt input
` 8-bit programmable timer/event counter withPFD(programmablefrequencydivider)
` Watchdog timer
` On-chip crystal and RC oscillator
` 1Kx14 program memory ROM
` 64x8 data memory RAM
` Real Time Clock (RTC)
` 8-bit prescaler for RTC
` Buzzer output
` Halt function and wake-up feature reduce power consumption
` LCD driver with 19x3 or 18x4 segments
` 4-level subroutine nesting
` Bit manipulation instruction
` 14-bit table read instruction
` Up to 1s instruction cycle with 4MHz system clock
` 63 powerful instructions
` All instructions in 1 or 2 machine cycles
` 48-pin SSOP package

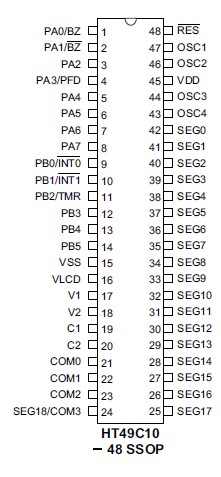

Pinout

Connection Diagram


Specifications

Supply Voltage............................-0.3V to 5.5V
Input Voltage ...............VSS-0.3V to VDD+0.3V
Storage Temperature................-50 to 125
Operating Temperature ..............-25 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings " may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT49C10 is an 8-bit high performance single chip microcontroller. Its single-cycle instruction and two-stage pipeline architecture make it suitable for high speed applications. The device is also suited for multiple LCD low power applications among which are calculators, clock timers, games, scales, leisure products, other hand held LCDproducts, and battery systems in particular.
