HT82J927A

Features: · USB 2.0 low speed compliance/USB HID 1.1 compliance· Operation voltage: 4.2V~5.5V· Operation frequency:6MHz· 12 function buttons· Mode switch: digital mode or analog mode can changed by switch· Interface: USB+vibration· One LED indicator (indicate for digital and analog mode switch)· A...

product image

HT82J927A Picture
See larger image
SeekIC No. : 004367046 Detail

HT82J927A: Features: · USB 2.0 low speed compliance/USB HID 1.1 compliance· Operation voltage: 4.2V~5.5V· Operation frequency:6MHz· 12 function buttons· Mode switch: digital mode or analog mode can changed by ...

HT82J927A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT82J927A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· USB 2.0 low speed compliance/USB HID 1.1 compliance
· Operation voltage: 4.2V~5.5V
· Operation frequency:6MHz
· 12 function buttons
· Mode switch: digital mode or analog mode can changed by switch
· Interface: USB+vibration
· One LED indicator (indicate for digital and analog mode switch)
· An 8-way D-pad
· 2 sticks (X-axis Y-axis Throttle Rudder)
· Compatible operation system: Windows 98SE/2000/XP/XP SP1/XP SP2/2000 SERVER/2003 SERVER
· Vibration function (Driver optional install, if has install driver must have installed DirectX7.0 or later version too)
· 28-pin SOP package


Pinout

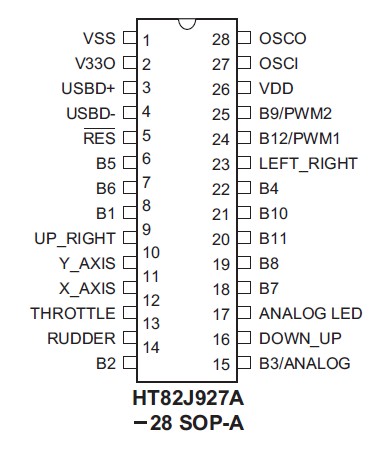

Connection Diagram


Specifications

Supply Voltage ...........................VSS-0.3V to VSS+6.0V
Input Voltage............................. VSS-0.3V to VDD+0.3V
Storage Temperature ........................... -50 to 125
Operating Temperature...............................0 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

HT82J927A is designed as USB+ Vibration interface gamepad controller,it can easily used via the game controller input function on Windows 98SE/2000/XP/XP SP1/XP SP2/2000 SERVER/2003 SERVER operation systems. It has 12 function buttons, vibration function, one LED indicator, 2 sticks, an 8-way D-pad.
