Product Details

Description



Features:

· Operating voltage: 4.4V~5.25V
· Compatible with Microsoft Windows 2000 and 5-button Wheel Mouse
· Complete Universal Serial Bus specs V1.1 compatibility
· Serial Bus Interface Engine (SIE)
· USB transceiver
· Microsoft 3D Intelli mouse and IBM PS/2 mouse compatible
· Supports five buttons and Z-axes input
· Z-axis can support two kinds of scroller input (optomechanical and mechanical)
· Single chip solution especially for USB mouse function
· HALT function and wake-up feature reduce power consumption
· Plug and Play functions
· Minimal external components
· 6MHz crystal oscillator for system clock
· Interface compliant with ADNS-2051, ADNS-2610 and ADNS-2620
· Pass WHQL, USB-IF and EMC testing
· 20-pin DIP package

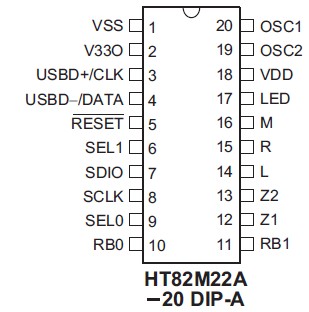

Pinout

Connection Diagram




Description

HT82M22A is a Plug and Play Windows 2000 and 5-button 3D USB+PS/2 Mouse controller. They can support the USB Standard Request as well as HID Class Request version 1.1. It is compatible with Microsoft Intelli 3D PS/2 mouse. The Z-axis can support two kinds of scroller input, namely; mechanical and optomechanical. HT82M22A requires minimal external components to implement 3D USB plus PS/2 mouse. All its features combined and make up this versatile Holtek 8-bit MCU with an on-chip USB interface logic. The USB is specified by the Universal Serial Bus Specification V1.1.
