HT82M30A

Features: ` Operating voltage: 4.0V~5.5V` Microsoft Intelli 3D PS/2 and IBM PS/2 mouse compatible` Microsoft Windows 2000 and 5-button Wheel mouse compatible` Z-axis can support three kinds of scroller input divided by 2 or 4 (only for H2610 and H2620)` Supports 400 or 800 DPI for H2051` Serial in...

product image

HT82M30A Picture
See larger image
SeekIC No. : 004367072 Detail

HT82M30A: Features: ` Operating voltage: 4.0V~5.5V` Microsoft Intelli 3D PS/2 and IBM PS/2 mouse compatible` Microsoft Windows 2000 and 5-button Wheel mouse compatible` Z-axis can support three kinds of scrol...

HT82M30A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT82M30A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 4.0V~5.5V
` Microsoft Intelli 3D PS/2 and IBM PS/2 mouse compatible
` Microsoft Windows 2000 and 5-button Wheel mouse compatible
` Z-axis can support three kinds of scroller input divided by 2 or 4 (only for H2610 and H2620)
` Supports 400 or 800 DPI for H2051
` Serial interface with H2051, H2610, H2620
` Auto detect as to which photo sensor is used
` 2MHz RC oscillator for system frequency with external pull-high resistor (140k)
` 16/18-pin DIP package

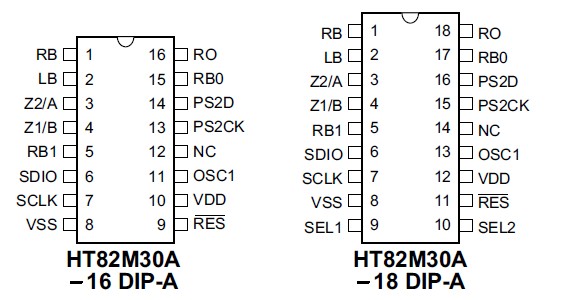

Pinout

Connection Diagram




Specifications

Supply Voltage ..........................VSS-0.3V to VSS+6.0V
Input Voltage ............................VSS-0.3V to VSS+6.0V
Storage Temperature .......................... -50 to 125
Operating Temperature...........................-40 to 85

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT82M30A is designed as 2D, 3D 3/5-key PS/2 optical mouse controller. These have serial interface to access the Agilent sensor H2051, H2610, H2620 or the same compatible series sensor. Refer to the datasheets for detailed register descriptions of the Agilent sensors.
