HT82V26

Features: · Operating voltage: 5V· Low power consumption at 400mW (Typ.)· Power-down mode: Under 2mA (Typ.)· 16-bit 30 MSPS A/D converter· Guaranteed wont miss codes· 1~6 programmable gain· Correlated Double Sampling· 250mV programmable offset· Input clamp circuitry· Internal voltage reference· ...

product image

HT82V26 Picture
See larger image
SeekIC No. : 004367100 Detail

HT82V26: Features: · Operating voltage: 5V· Low power consumption at 400mW (Typ.)· Power-down mode: Under 2mA (Typ.)· 16-bit 30 MSPS A/D converter· Guaranteed wont miss codes· 1~6 programmable gain· Correla...

HT82V26 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT82V26
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 5V
· Low power consumption at 400mW (Typ.)
· Power-down mode: Under 2mA (Typ.)
· 16-bit 30 MSPS A/D converter
· Guaranteed wont miss codes
· 1~6 programmable gain
· Correlated Double Sampling
· 250mV programmable offset
· Input clamp circuitry
· Internal voltage reference
· Multiplexed byte-wide output (8+8 format)
· Programmable 3-wire serial interface
· 3V/5V digital I/O compatibility
· 3-channel operation up to 30 MSPS
· 2-channel (Even-Odd) operation up to 30 MSPS
· 1-channel operation up to 25 MSPS
· 28-pin SSOP/SOP package (lead-free on request)


Application

·Flatbed document scanners
·Film scanners
·Digital color copiers
·Multifunction periphera


Pinout

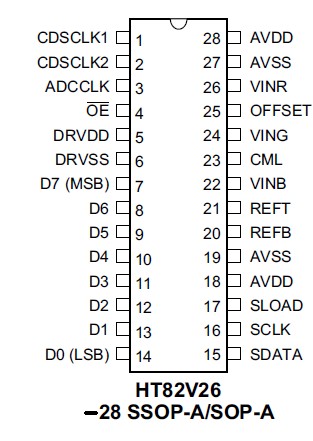

Connection Diagram


Specifications

Supply Voltage .........................VSS-0.3V to VSS+5.5V
Input Voltage ...........................VSS-0.3V to VDD+0.3V
Storage Temperature ...........................-50 to 125
Operating Temperature ..........................-25 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT82V26 is a complete analog signal processor for CCD imaging applications. It features a 3-channel architecture designed to sample and condition the outputs of tri-linear color CCD arrays. Each channel consists of an input clamp, Correlated Double Sampler (CDS), offset DAC and Programmable Gain Amplifier (PGA), and a high performance 16-bit A/D converter.

The CDS amplifiers HT82V26 may be disabled for use with sensors such as Contact Image Sensors (CIS) and CMOS active pixel sensors, which do not require CDS. The 16-bit digital output is multiplexed into an 8-bit output word that is accessed using two read cycles. The internal registers are programmed through a 3-wire serial interface, which provides gain, offset and operating mode adjustments.

The HT82V26 operates from a single 5V power supply, typically consumes 400mW of power.
