HT82V738

Features: · Single power supply voltage: 3V~5V· Low power consumption· Low distortion· Low clock jitter sensitivity· High SNR ratio and dynamic range· Low harmonic distortion· Wide temperature range· Control feature for click and Pops· On-chip digital de-emphasis for 32, 44.1 and 48kHz· 16-pin NSO...

product image

HT82V738 Picture
See larger image
SeekIC No. : 004367109 Detail

HT82V738: Features: · Single power supply voltage: 3V~5V· Low power consumption· Low distortion· Low clock jitter sensitivity· High SNR ratio and dynamic range· Low harmonic distortion· Wide temperature range...

HT82V738 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT82V738
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single power supply voltage: 3V~5V
· Low power consumption
· Low distortion
· Low clock jitter sensitivity
· High SNR ratio and dynamic range
· Low harmonic distortion
· Wide temperature range
· Control feature for click and Pops
· On-chip digital de-emphasis for 32, 44.1 and 48kHz
· 16-pin NSOP package




Application

· DVD players
· Home theater systems
· Digital TV
· Digital set top boxes
· MP3 players
· CD players
· Automotive systems

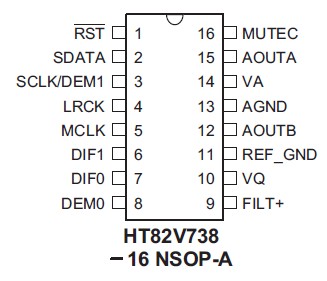

Pinout

Connection Diagram




Specifications

Supply Voltage ..........................VSS-0.3V to VSS+6.0V
Input Voltage ...........................VSS-0.3V to VDD+0.3V
Storage Temperature ...........................-50 to 125
Operating Temperature ..........................-10 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT82V738 is a high performance audio DAC converter. It provides digital de-emphasis (32, 44.1 and 48kHz), external mute control and adjustment for serial data and clock. It accepts data at audio rates up to 96kHz. It performs within a wide dynamic range, high SNR ratio and has low clock jitter sensitivity. HT82V738 is an ideal DAC for DVD players, MP3 players and set-top box systems. It is also pin-compatible with CS4340.
