Features:

` Universal specification
` Operating voltag0e: 2.0V~5.5V
` Low standby current
` Lowmemoryretentioncurrent:0.1A(typ.)
` Tone/pulse switchable
` Interface with LCD driver
` 32 digits for redialing
` 32 digits for the SA memory dialing
` One-key redialing
` Pause and PT key for PBX
` 3.58MHz crystal or ceramic resonator
` Hand-free control
` Hold-line control
` Pause, PT can be saved for redialing
` On-hook store function
` Keytone function
` Lock function
` Resistor options
- M/B ratio
- Flash function and flash time
- Pause and PT duration
- Pulse number
- Inter-digit pause time for 10pps
` Memory number: 22 memories



Pinout

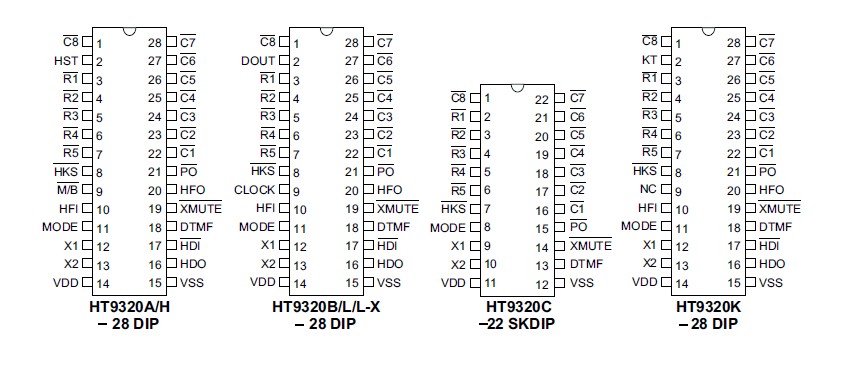

  Connection Diagram


Specifications

Supply Voltage ................................-0.3V to 6V
Input Voltage .................. VSS-0.3 to VDD+0.3V
Storage Temperature ............. .-50 to 125
Operating Temperature .............-20 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under Absolute MaximumRatings
 may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT9320 series tone/pulse dialers are CMOS LSI for telecommunication systems. They are designed to meet various dialing specifications through resistor option matrix.

The HT9320 series are offered in six different versions. The different functions of the six versions are listed in the selection table. The HT9320A, HT9320H versions provide the on-hook store function; the HT9320B version provides the LCD interface function; the HT9320K version provides the keytone function; the HT9320L version provides both the LCD interface function and IDD lock function. The six versions also supply the hold-line and hand-free functions, which are suitable for feature phone applications.

HT9320 series provide SA, Redial and 20 one-touch/two-touch memory dialing. If the keyboard includes M1~M20 keys it can be used as one-touch memory dialing. Otherwise, it works as two-touch (PAGEM1~M10) or three-touch(APAGE0~9) memory dialing for speed dialing in either pulse or tone mode.
