HV518

Features: · 32 output lines· 90V output swing· Active pull-down· Latches on all outputs· Up to 6MHz @ VDD = 5V· -40°C to +85°C operationPinoutSpecificationsSupply voltage, VDD1 -0.5V to +6.0VSupply voltage, VPP1 -0.5V to +90VLogic input levels1-0.5V to VDD +0.5VContinuous total power dissipation 2...

product image

HV518 Picture
See larger image
SeekIC No. : 004367553 Detail

HV518: Features: · 32 output lines· 90V output swing· Active pull-down· Latches on all outputs· Up to 6MHz @ VDD = 5V· -40°C to +85°C operationPinoutSpecificationsSupply voltage, VDD1 -0.5V to +6.0VSupply ...

HV518 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HV518
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 32 output lines
· 90V output swing
· Active pull-down
· Latches on all outputs
· Up to 6MHz @ VDD = 5V
· -40°C to +85°C operation


Pinout

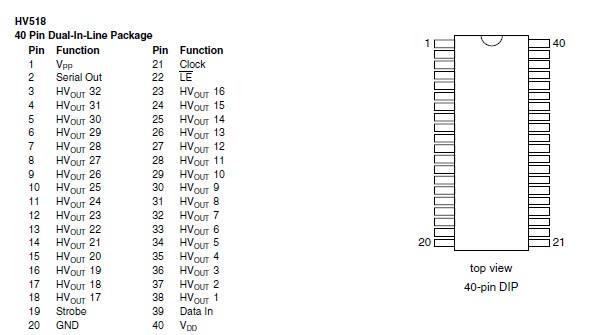

Connection Diagram


Specifications

Supply voltage, VDD1                             -0.5V to +6.0V
Supply voltage, VPP1                              -0.5V to +90V
Logic input levels1                          -0.5V to VDD +0.5V
Continuous total power dissipation 2,3           1200mW
Operating temperature range               -40 to +85
Storage temperature range               -65 to +150
Lead temperature 1.6mm(1/16 inch)                260
from case for 10 seconds
Notes:
1. All voltages referenced to GND.
2. Duty cycle is limited by the total power dissipated in the package.
3. For operation above 25 ambient, derate linearly to 85 at 20mW/.


Description

The HV518 is designed for vacuum fluorescent or DC plasma applications, where it can serve as a segment, digit or matrix display driver. Each device has 32 outputs, 32 latches and a 32 bit cascadable shift register.

Serial data enters the shift register on the LOW-to-HIGH transition of the clock input. With latch enable (LE) HIGH, parallel data is transferred to the output buffers through a 32-bit latch. When LE is low the data is stored in the latch. When STROBE is LOW, all outputs are enabled; if STROBE is HIGH, all outputs of HV518 are LOW.
