Part Number: HVM14SR



MFG: HITACHI

Package Cooled: SMD

D/C: 2008+



Urgent Purchase

HVM14SR Maximum Ratings

Item
Symbol
Value
Unit
Reverse voltage
VR
50
V
Forward current
IF
50
mA
Power dissipation
Pd*1
100
mW
Junction temperature
Tj
125
Storage temperature
Tstg
?55 to +125
Note: 1. Two device total.

HVM14SR Features

·  Low forward resistance. (rf =7.0Wmax)
·  Low capacitance. (C=0.25pF typ)
·  MPAK package is suitable for high density surface mounting and high speed assembly.

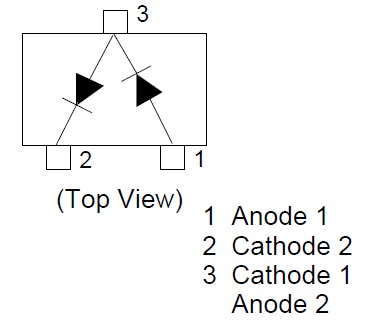

HVM14SR Connection Diagram

HVM14SR Connection Diagram
