SeekIC No. : 003716587 Detail

HW005A0F1-SR: CONVRT DC/DC 3.3V 17W OUT SMD TR

HW005A0F1-SR Data Sheet

Get Latest Price

Part Number:: HW005A0F1-SR
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HW004A0A1 evaluate
US $15.08 - 20.7 / Piece

DC/DC Converters TH 4A, IN 48V OUT 5V

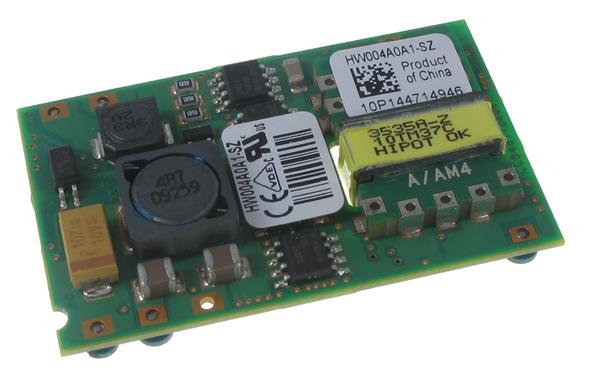

HW004A0A1-SZ evaluate
US $17.4 - 22.2 / Piece

DC/DC Converters 48Vin 5Vout 4A SMT
HW004A0A1Z evaluate
US $15.08 - 20.7 / Piece

DC/DC Converters 48Vin 5Vout 4A Th

Product Details

Quick Details

Series:	HW005	Manufacturer:	GE Energy
Type:	Isolated	Number of Outputs:	1
Voltage - Input (Min):	36V	Voltage - Input (Max):	75V
Voltage - Output 1:	3.3V	Voltage - Output 2:	-
Voltage - Output 3:	-	Current - Output (Max):	5A
Power (Watts) - Manufacture Series:	17W	Supply Voltage - Max :	3.6 V
Voltage - Isolation:	2.25kV (2250V)	Features:	With Remote On/Off
Mounting Type:	Surface Mount	Package / Case:	18-DIP SMD Module (6 Leads)
Size / Dimension:	1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.6mm)	Packaging:	Tape & Reel (TR)
Operating Temperature:	-40°C ~ 85°C

Description

Type: Isolated
Number of Outputs: 1
Voltage - Output 2: -
Voltage - Output 3: -
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Voltage - Output 1: 3.3V
Current - Output (Max): 5A
Efficiency: 87%
Voltage - Input (Min): 36V
Voltage - Input (Max): 75V
Features: With Remote On/Off
Manufacturer: GE Energy
Power (Watts) - Manufacture Series: 17W
Voltage - Isolation: 2.25kV (2250V)
Packaging: Tape & Reel (TR)
Package / Case: 18-DIP SMD Module (6 Leads)
Size / Dimension: 1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.6mm)
Series: HW005

Parameters:

Technical/Catalog Information	HW005A0F1-SR
Vendor	Lineage Power
Category	Power Supplies
Voltage - Input	36 ~ 75VDC
Output	3.3V
Power (Watts)	17W
Number of Outputs	1
1st Output	3.3 VDC @ 5A
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Surface Mount
Packaging	Bulk
Package / Case	18-SMD
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HW005A0F1 SR HW005A0F1SR
