Product Details

Description

Features:

` Internal frequency compensation
` Large DC voltage gain with 100 dB typical
` High input resistance with 5M typical
` Low input noise voltage with 10nV/HZ
` Maximum power supply voltages: ± 18V
` Compatible with NJM 4558

Application

· Audio AC-3 decoded system
· Audio amplifier

Pinout

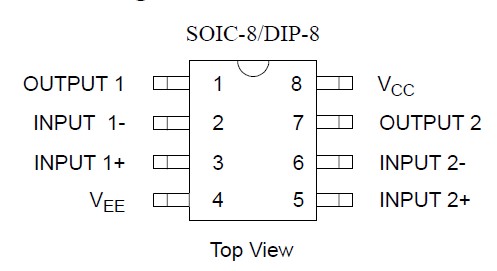

Connection Diagram

Specifications

Parameter	Symbol	Value		Unit
Power Supply Voltage	V_CC	+18		V
	V_EE	-18
Differential Input Voltage	V_ID	±30		V
Input Voltage	V_IC	±15		V
Power Dissipation	P_D	DIP	500	mW
		SOIC	800
Operating Temperature Range	T_OP	-40 to 85
Storage Temperature Range	T_STG	-40 to 125

Note: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operation Ratings" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.

Description

The HWD4558 consists of two high performance operational amplifiers. The IC features high gain, high input resistance, excellent channel separation, wide range of operating voltage and internal frequency compensation. It is specifically suitable for applications in differential- in, differential-out as well as in potential-metric amplifiers and where gain and phase matched channels are mandatory. The HWD4558 contains ± 18Vmaximum power supply voltage.
