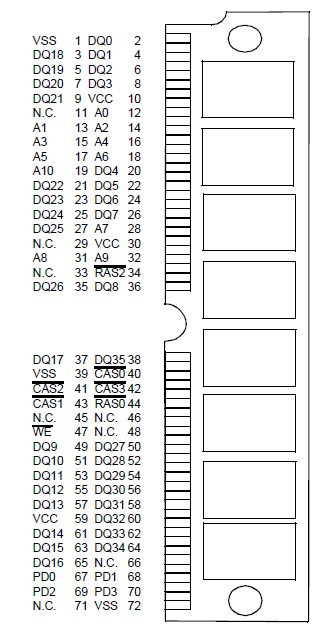

PinoutSpecificationsOperation temperature range ........................................ 0 to + 70 °CStorage temperature range......................................... 55 to 125 °CInput/output voltage ........................... 0.5V to min (Vcc+0.5, 7.0) VPower supply voltage........................
HYM364020S-60: PinoutSpecificationsOperation temperature range ........................................ 0 to + 70 °CStorage temperature range......................................... 55 to 125 °CInput/output volta...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
PinoutSpecificationsOperating temperature range .....................................................
PinoutSpecificationsOperating temperature range .....................................................
PinoutSpecificationsOperating temperature range .....................................................
The HYM364020S-60 is a 16 MByte DRAM module organized as 4 194 304 words by 36- Bit in a 72-pin single-in-line package comprising eight HYB 5117400BJ 4M x 4 DRAMs and four HYB 514100BJ 4M x 1 DRAMS in 300 mil wide SOJ-packages mounted together with twelve 0.2 F ceramic decoupling capacitors on a PC board.
The HYM364020S-60 can also be used as a 8 388 608 words by 18-bits dynamic RAM module by means of connecting DQ0 and DQ18, DQ1 and DQ19, DQ2 and DQ20, . , DQ17 and DQ35, respectively.
Each HYM364020S-60 is described in the data sheet and is fully electrical tested and processed according to SIEMENS standard quality procedure prior to module assembly. After assembly onto the board, a further set of electrical tests is performed.
The speed of the HYM364020S-60 module can be detected by the use of four presence detect pins.
The common I/O feature on the HYM364020S-60 dictates the use of early write cycles.
