PinoutSpecificationsOperation temperature range ...........................................0 to + 70 °CStorage temperature range.......................................... 55 to 125 °CInput/output voltage ............................. 0.5V to min (Vcc+0.5, 7.0) VPower supply voltage...................

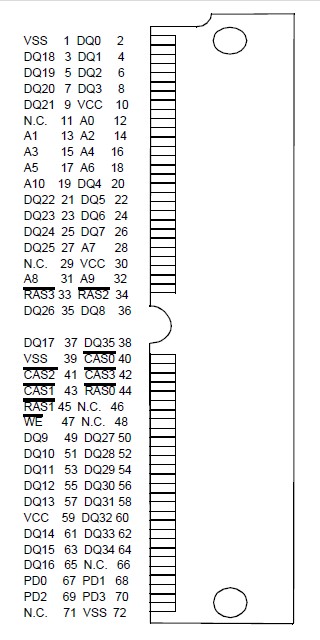

HYM368025S-50: PinoutSpecificationsOperation temperature range ...........................................0 to + 70 °CStorage temperature range.......................................... 55 to 125 °CInput/output vo...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
PinoutSpecificationsOperating temperature range .....................................................
PinoutSpecificationsOperating temperature range .....................................................
PinoutSpecificationsOperating temperature range .....................................................
The HYM HYM368025S-50 is a 32 MByte DRAM module organized as 8 388 608 words by 36- Bit in two banks in a 72-pin single-in-line package comprising sixteen HYB 5117405BJ 4Mx 4 EDO-DRAMs and eight HYB 514105BJ 4M x 1 EDO-DRAMs in 300 mil wide SOJ-packages mounted together with decoupling capacitors on a PC board.
Each HYB HYM368025S-50 and HYB 514105BJ is described in the data sheet and is fully electrical tested and processed according to SIEMENS standard quality procedure prior to module assembly. After assembly onto the board, a further set of electrical tests is performed.
The speed of the HYM368025S-50 module can be detected by the use of four presence detect pins.
The common I/O feature on the HYM HYM368025S-50 dictates the use of early write cycles.
