Purchase HZM5.6ZFA, In-stock HZM5.6ZFA From SeekIC.
MFG:RENESAS D/C:07+/08+
- Table of contents:
HZM5.6ZFA
-
Suppliers
DataSheet
General Description
HZM5.6ZFA Maximum Ratings
|
Item |
Symbol |
Value |
Unit |
| Power dissipation |
Pd *1 |
200 |
mW |
| Junction temperature |
Tj |
150 |
|
| Storage temperature |
Tstg |
-55 to +150 |
Note 1. Four device total, See Fig.2.
HZM5.6ZFA Features
· HZM5.6ZFA has four devices, and can absorb external + and -surge.
· Low capacitance (C=8.5pF max) and can protect ESD of signal line.
· MPAK-5 Package is suitable for high density surface mounting and high speed assembly.
· Low capacitance (C=8.5pF max) and can protect ESD of signal line.
· MPAK-5 Package is suitable for high density surface mounting and high speed assembly.

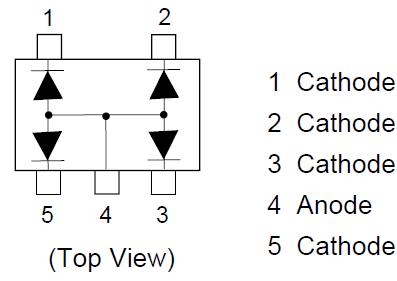

HZM5.6ZFA Connection Diagram
HZM5.6ZFA
