Product Details

Description



Features:

• 80C52 based architecture
• 8K x 8 ROM (IC80C52 only)
• 256 x 8 RAM
• Three 16-bit Timer/Counters
• Full duplex serial channel
• Boolean processor
• Four 8-bit I/O ports, 32 I/O lines
• Memory addressing capability
64K ROM and 64K RAM
• Program memory lock
Encrypted verify (32 bytes)
Lock bits (2)
• Power save modes:
Idle and power-down
• Eight interrupt sources
• Most instructions execute in 0.3 s
• CMOS and TTL compatible
• Maximum speed: 40 MHz @ Vcc = 5V
• Packages available:
40-pin DIP
44-pin PLCC
44-pin PQFP

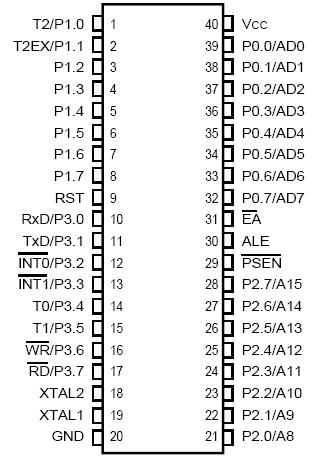

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VTERM
 Terminal Voltage with Respect to GND(2)
2.0 to +7.0
V
TBIAS
 Temperature Under Bias(3)
0 to +70
TSTG
 Storage Temperature
65 to +125
PT
 Power Dissipation
1.5
V
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. Minimum DC input voltage is 0.5V. During transitions, inputs may undershoot to 2. 0V for periods less than 20 ns. Maximum DC voltage on output pins is Vcc + 0.5V which may overshoot to Vcc + 2.0V for periods less than 20 ns.
3. Operating temperature is for commercial products only defined by this specification.


Description

The IC80C32 are high-performance microcontroller fabricated using high-density CMOS technology. The CMOS IC80C32 is functionally compatible with is the industry standard 80C52/32 microcontrollers.

The IC80C32 is designed with 8K x 8 ROM (IC80C52 only); 256 x 8 RAM; 32 programmable I/O lines; a serial I/ O port for either multiprocessor communications, I/O expansion or full duplex UART; three 16-bit timer/counters;an eight-source, two-priority-level, nested interrupt structure; and an on-chip oscillator and clock circuit. The IC80C32 can be expanded using standard TTL compatible memory.
