ICB1FL02G

Display Drivers & Controllers INDUSTRIAL IC'S

product image

ICB1FL02G Picture
See larger image
SeekIC No. : 00630 Detail

ICB1FL02G: Display Drivers & Controllers INDUSTRIAL IC'S

ICB1FL02G Data Sheet

floor Price/Ceiling Price

US $ .98~1.27 / Piece | Get Latest Price
Part Number:
ICB1FL02G
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~605
  • 605~1000
  • 1000~2000
  • 2000~5000
  • Unit Price
  • $1.27
  • $1.07
  • $1.02
  • $.98
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Packaging : Reel

Description

Driver Type :
Operating Supply Voltage :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Packaging : Reel


Features:

• Discontinuous Conduction Mode PFC
• Integrated Compensation of PFC Control Loop
• Adjustable PFC Current Limitation
• Adjustable PFC Bus Voltage

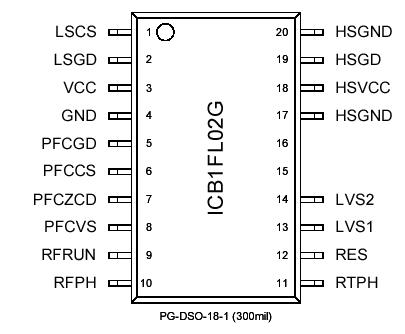

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
Limit Values
Unit
Remarks
min.
max.
LSCS Voltage
VLSCS
-5
6
V
LSCS Current
ILSCS
-3
3
mA
LSGD Voltage
VLSGD
-0.3
Vcc+0.3
V
internally clamped to 11V
VCC Voltage
VVCC
-0.3
18
V
see VCC Zener Clamp
VCC Zener Clamp Current
IVCCzener
-5
5
mA
IC in Power Down Mode
PFCGD Voltage
VPFCGD
-0.3
Vcc+0.3
V
internally clamped to 11V
PFCCS Voltage
VPFCCS
-5
6
V
PFCCS Current
IPFCCS
-3
3
mA
PFCZCD Voltage
VPFCZCD
-3
6
V
PFCZCD Current
IPFCZCD
-5
5
mA
PFCVS Voltage
VPFCVS
-0.3
5.3
V
RFRUN Voltage
VRFRUN
-0.3
5.3
V
RFPH Voltage
VRFPH
-0.3
5.3
V
RTPH Voltage
VRTPH
-0.3
5.3
V
RES Voltage
VRES
-0.3
5.3
V
LVS1 Current1
ILVS1_1
-1
1
mA
IC in Power Down Mode
LVS1 Current2
ILVS1_2
-3
3
mA
IC in Active Mode
LVS2 Current1
ILVS2_1
-1
1
mA
IC in Power Down Mode
LVS2 Current2
ILVS2_2
-3
3
mA
IC in Active Mode
HSGND Voltage
VHSGND
-900
900
V
referring to GND
HSGND, Voltage Transient
dVHSGND/dt
-40
40
V/ns
HSVCC Voltage
VHSVCC
-0.3
18
V
referring to HSGND
HSGD Voltage
VHSGD
-0.3
VHSVCC+0.3
V
internally clamped to 11V
referring to HSGND
PFCGD Peak Source Current
IPFCGDsomax
-
150
mA
< 100ns
PFCGD Peak Sink Current
IPFCGDsimax
-
700
mA
< 100ns
LSGD Peak Source Current
ILSGDsomax
-
75
mA
< 100ns
LSGD Peak Sink Current
ILSGDsimax
-
400
mA
< 100ns
HSGD Peak Source Current
IHSGDsomax
-
75
mA
< 100ns



Description

The Smart Ballast IC of the ICB1FL02G is designed to control a Fluorescent Lamp Ballast including a Discontinuous Conduction Mode Power Factor Correction (PFC), a lamp Inverter Control and a High Voltage Level Shift Half-Bridge Driver.

The application of the ICB1FL02G requires a minimum of external components. There are integrated low pass filters and an internal compensation for the PFC voltage loop control. Preheating time is adjustable by a single resistor only in the range between 0 and 2000ms. In the same way the preheating frequency and run frequency are set by resistors only. The control concept covers requirements for T5 lamp ballasts such as detection of end-of-life and detection of capacitive mode operation and other protection measures even in multilamp topologies.

ICB1FL02G is easy to use and easy to design and therefore a basis for a cost effective solution for fluorescent lamp ballasts.




Parameters:

Technical/Catalog InformationICB1FL02G
VendorInfineon Technologies
CategoryIntegrated Circuits (ICs)
Package / CaseDSO-18
PackagingTape & Reel (TR)
Voltage - Supply10.5 V ~ 17.5 V
TypePFC/Ballast Controller
Current - Supply650A
Current - Output-
Frequency20 ~ 100 kHz
Operating Temperature-25°C ~ 125°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ICB1FL02G
ICB1FL02G
