ICL7112 General Description
ICL7112 Maximum Ratings
Supply Voltage (V+ to DGND) . . . . . . . . . . . . . . . . . . -0.3V to +6.5V
Supply Voltage (V- to DGND). . . . . . . . . . . . . . . . . . . +0.3V to -6.5V
VREF, VIN to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25V
AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +1V to -1V
VREF, VIN, AGND Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25mA
Digital I/O Pin Voltages. . . . . . . . . . . . . . . . . . . . . -0.3V to V+ +0.3V
PROG to DGND Voltage . . . . . . . . . . . . . . . . . . . . V- to (V+ +0.3V)
ICL7112 Features
• 12-Bit Resolution and Accuracy
• No Missing Codes
• Microprocessor Compatible Byte-Organized Buffered Outputs
• Auto-Zeroed Comparator for Low Offset Voltage
• Low Linearity and Gain Errors
• Low Power Consumption (60mW)
• No Gain or Offset Adjustment Necessary
• Provides 3% Usable Overrange
• Fast Conversion (40µs)

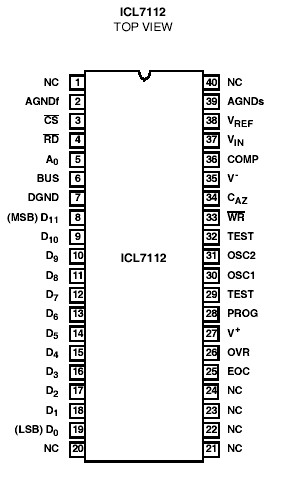

ICL7112 Connection Diagram
