Part Number: ICL7116

MFG: RCA

Package Cooled: QFP-44

D/C: 00+

Description: The Intersil ICL7116 and ICL7117 are high performance, low power, 31/2 digit, A/D converters. Included are seven segmen...

ICL7116 General Description

The Intersil ICL7116 and ICL7117 are high performance, low power, 31/2 digit, A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7116 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive. The ICL7117 will directly drive an instrument size, light emitting diode (LED) display.
The ICL7116 and ICL7117 have all of the features of the ICL7106 and ICL7107 with the addition of a HOLD Reading input. With this input, it is possible to make a measurement and retain the value on the display indefinitely. To make room for this feature the reference low input has been connected to Common internally rather than being fully differential.
These circuits retain the accuracy, versatility, and true economy of the ICL7106 and ICL7107. They feature auto-zero to less than 10mV, zero drift of less than 1mV/oC, input bias current of 10pA maximum, and roll over error of less than one count. The versatility of true differential input is of particular advantage when measuring load cells, strain gauges and other bridge-type transducers. And finally, the true economy of single power supply operation (ICL7116) enables a high performance panel meter to be built with the addition of only eleven passive components and a display.

ICL7116 Maximum Ratings

Supply Voltage
ICL7116, V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
ICL7117, V+ to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6V
ICL7117, V- to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -9V
Analog Input Voltage (Either Input) (Note 1). . . . . . . . . .V+ to V-
Reference Input Voltage (Either Input) . . . . . . . . . . . . . .V+ to V-
Clock Input
ICL7116 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TEST to V+
ICL7117 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND to V+

ICL7116 Features

• HOLD Reading Input Allows Indefinite Display Hold
• Guaranteed Zero Reading for 0V Input
• True Polarity at Zero for Precise Null Detection
• 1pA Typical Input Current
• Direct Display Drive
- LCD ICL7116
- LED lCL7117
• Low Noise - Less Than 15mVP-P (Typ)
• On Chip Clock and Reference
• Low Power Dissipation - Typically Less Than 10mW
• No Additional Active Circuits Required
• Surface Mount Package Available

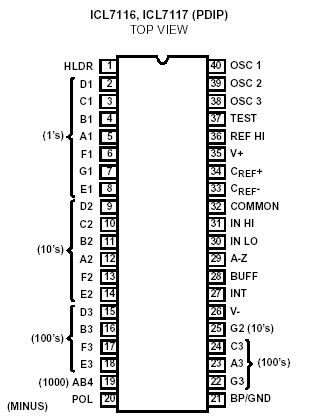

ICL7116 Connection Diagram

ICL7116 datasheet

ICL7116
PDF/DataSheet Download

Datasheet: ICL7116
File Size: 197672 KB
Manufacturer: INTERSIL [Intersil Corporation]
Click here to Download
