ICL7665S

Features:

• Guaranteed 10mA Maximum Quiescent Current OverTemperature
• Guaranteed Wider Operating Voltage Range Over EntireOperating Temperature Range
• 2% Threshold Accuracy (ICL7665SA)
• Dual Comparator with Precision Internal Reference
• 100ppm/ Temperature Coefficient of Threshold Voltage
• 100% Tested at 2V
• Output Current Sinking Ability . . . . . . . . . . . . Up to 20mA
• Individually Programmable Upper and Lower Trip Voltagesand Hysteresis Levels




Application

• Pocket Pagers
• Portable Instrumentation
• Charging Systems
• Memory Power Back-Up
• Battery Operated Systems
• Portable Computers
• Level Detectors

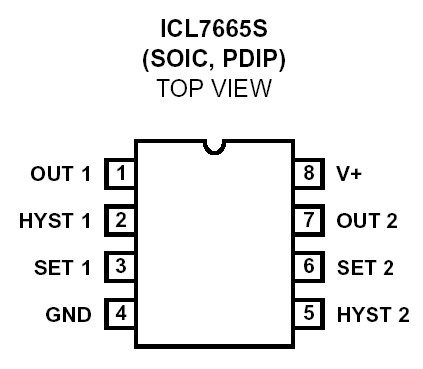

Pinout






Specifications

Supply Voltage (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +18V
Output Voltages OUT1 and OUT2 . . . . . . . . . . . . . . . . . -0.3V to 18V
(with respect to GND) (Note 2)
Output Voltages HYST1 and HYST2 . . . . . . . . . . . . . . .-0.3V to +18V
(with respect to V+) (Note 2)
Input Voltages SET1 and SET2 . . .. . . (GND -0.3V) to (V+ V- +0.3V)
(Note 2)
Maximum Sink Output OUT1 and OUT2 . . . . . . . . . . . . . . . . . . 25mA
Maximum Source Output Current
HYST1 and HYST2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -25mA




Description

The ICL7665S Super CMOS Micropower Over/Under Voltage Detector contains two low power, individually programmable Voltage detectors on a single CMOS chip. Requiring typically 3A for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors. An internal bandgap-type reference provides an accurate threshold voltage while operating from any supply in the 1.6V to 16V range. The ICL7665S, Super Programmable Over/Under Voltage Detector is a direct replacement for the industry standard ICL7665B offering wider operating voltage and temperature ranges, improved threshold accuracy (ICL7665SA), and temperature coefficient, and guaranteed maximum supply current. All improvements are highlighted in the electrical characteristics section. All critical parameters are guaranteed over the entire commercial and industrial temperature ranges.
