General Description
ICL8052A General Description
The ICL8052A or ICL8068A/lCL71C03 chip pairs with their multiplexed BCD output and digit drivers are ideally suited for the visual display DVM/DPM market. The outstanding 41/2 digit accuracy, 200.00mV to 2.0000V full scale capability, auto-zero and auto-polarity combine with true ratiometric operation, almost ideal differential linearity and time-proven dual slope conversion. Use of these chip pairs eliminates clock feedthrough problems, and avoids the critical board layout usually required to minimize charge injection.
When only 2000 counts of resolution are required, the 71C03 can be wired for 31/2 digits and give up to 30 readings/sec., making it ideally suited for a wide variety of applications.
The ICL71C03 is an improved CMOS plug-in replacement for the lCL7103 and should be used in all new designs.
ICL8052A Maximum Ratings
ICL8052A, ICL8068A
Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18V
Differential Input Voltage
(8068A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30V
(8052A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6V
Input Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
Output Short Circuit Duration All Outputs (Note 2) . . . . . . Indefinite
ICL71C03
Power Supply Voltage (GND to V+). . . . . . . . . . . . . . . . . . . . . . 6.5V
Negative Supply Voltage (GND to V-) . . . . . . . . . . . . . . . . . . . . -17V
Analog Input Voltage (Note 3) . . . . . . . . . . . . .. . . . . . . V+ to VDigital
Input Voltage (Note 4) . . . . . . . . ... . . . . .(GND - 0.3V) to (V+ + 0.3V)
Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18V
Differential Input Voltage
(8068A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30V
(8052A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6V
Input Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
Output Short Circuit Duration All Outputs (Note 2) . . . . . . Indefinite
ICL71C03
Power Supply Voltage (GND to V+). . . . . . . . . . . . . . . . . . . . . . 6.5V
Negative Supply Voltage (GND to V-) . . . . . . . . . . . . . . . . . . . . -17V
Analog Input Voltage (Note 3) . . . . . . . . . . . . .. . . . . . . V+ to VDigital
Input Voltage (Note 4) . . . . . . . . ... . . . . .(GND - 0.3V) to (V+ + 0.3V)
ICL8052A Features
• Typically Less Than 2µVP-P Noise (200.00mV Full Scale, lCL8068A
• Accuracy Guaranteed to ±1 Count Over Entire ±20,000 Counts (2.0000V Full Scale)
• Guaranteed Zero Reading for 0V Input
• True Polarity at Zero Count for Precise Null Detection
• Single Reference Voltage Required
• Over-Range and Under-Range Signals Available for Auto- Ranging Capability
• All Outputs TTL Compatible
• Medium Quality Reference, 40ppm (Typ) on Board
• Blinking Display Gives Visual Indication of Over Range
• Six Auxiliary Inputs/Outputs are Available for Interfacing to UARTs, Microprocessors or Other Complex Circuitry
• 5pA Input Current (Typ) (8052A)
• Accuracy Guaranteed to ±1 Count Over Entire ±20,000 Counts (2.0000V Full Scale)
• Guaranteed Zero Reading for 0V Input
• True Polarity at Zero Count for Precise Null Detection
• Single Reference Voltage Required
• Over-Range and Under-Range Signals Available for Auto- Ranging Capability
• All Outputs TTL Compatible
• Medium Quality Reference, 40ppm (Typ) on Board
• Blinking Display Gives Visual Indication of Over Range
• Six Auxiliary Inputs/Outputs are Available for Interfacing to UARTs, Microprocessors or Other Complex Circuitry
• 5pA Input Current (Typ) (8052A)

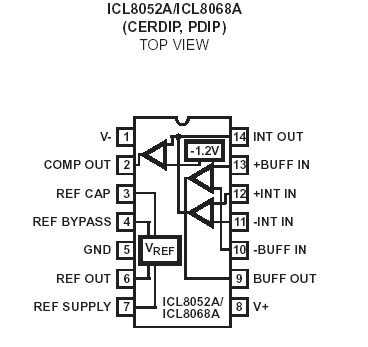

ICL8052A Connection Diagram
