Part Number: ICL8069



MFG: INTERSIL

Package Cooled: TO-92

D/C: 07+

Description: The ICL8069 is a 1.2V temperature-compensated voltage reference. It uses the bandgap principle to achieve excellent sta...


Urgent Purchase

ICL8069 General Description


The ICL8069 is a 1.2V temperature-compensated voltage reference. It uses the bandgap principle to achieve excellent stability and low noise at reverse currents down to 50A. Maxim's ICL8069 also features excellent stability, freedom from oscillation.

ICL8069 Maximum Ratings

Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Note 3
Forward Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
Reverse Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA

ICL8069 Features

• Low Bias Current (Min) . . . . . . . . . . . . . . . . . . . . . . .50A
• Low Dynamic Impedance
• Low Reverse Voltage
• Low Cost

ICL8069 Typical Application

Analog-to-Digital Converters
Digital-to-Analog Converters
Threshold Detectors
Voltage Regulators
Portable Instruments

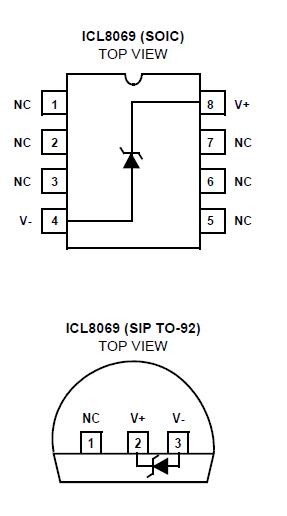

ICL8069 Connection Diagram

ICL8069 Connection Diagram

ICL8069 datasheet

ICL8069
PDF/DataSheet Download
