Product Details

Description

Features:

· Include Dialer, Speech, and Ringer Circuit in Single Chip, Replacing Two or More ICs
· Single Board Design Meets Multiple PTT Requirements.
· Operating Range From 15 to 100mA
· Selectable Make-Break Ratio
· Tone/Pulse Dialing
· 32 Digit Last Number Redial
· Ring Frequency Discrimination
· 2-tones Melody Generator

Pinout

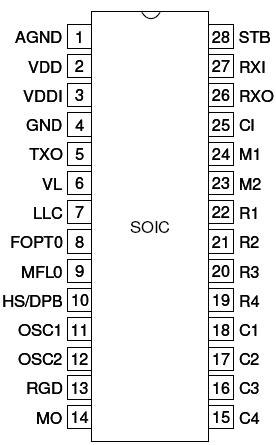

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VDDI	Supply Line Voltage	-0.3 to 7.0	V
V_IN	Digital Input Voltage	-0.3 to 7.0	V
T_STG	Storage Temperature	-55 to +150
T_SOL	Soldering Temperature	300

Note 1: Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

ICM7101D is a single chip telephone CMOS integrated circuits that meets multiple PTT requirements, allowing phone manufacturers to have single board design for various countries. This reduces inventory and simplify manufacturing processes.

ICM7101D integrates dialer, speech, and ringer circuits. The integration reduces component counts, hence increases product reliability.
