Purchase ICS1574B, In-stock ICS1574B From SeekIC.
Part Number: ICS1574B
Description: The ICS1574B is a very high performance monolithic phaselocked loop (PLL) frequency synthesizer design...
- Table of contents:
ICS1574B
-
Suppliers
DataSheet
General Description
ICS1574B General Description
The ICS1574B is a very high performance monolithic phaselocked loop (PLL) frequency synthesizer designed for laser
engine applications. Utilizing ICS's advanced CMOS mixedmode technology, the ICS1574B provides a low cost solution for high-end pixel clock generation for a variety of laser engine product applications.
The pixel clock output (PCLK) frequency is derived from the main clock by a programmable resettable divider.
Operating frequencies are fully programmable with direct control provided for reference divider, feedback divider and
post-scaler.
ICS1574B Maximum Ratings
VDD, VDDO (measured to VSS) . ... . .. . . . . . . . . . 7.0 V
Digital Inputs . . . . . . . . . . . VSS 0.5 V to VDD +0.5 V
Digital Outputs . . . . . .. . . VSS 0.5 V to VDDO +0.5 V
Ambient Operating Temperature .. . . 55 to +125
Storage Temperature . . . . . . . . . . . . 65 to +150
Junction Temperature . . . . . . . . . .. . . . . . . . . . . 175
Soldering Temperature . . . . . . . . .. . . .. . . . . . . . 260
Digital Inputs . . . . . . . . . . . VSS 0.5 V to VDD +0.5 V
Digital Outputs . . . . . .. . . VSS 0.5 V to VDDO +0.5 V
Ambient Operating Temperature .. . . 55 to +125
Storage Temperature . . . . . . . . . . . . 65 to +150
Junction Temperature . . . . . . . . . .. . . . . . . . . . . 175
Soldering Temperature . . . . . . . . .. . . .. . . . . . . . 260
ICS1574B Features
• Supports high resolution laser graphics. PLL/VCO frequency re-programmable through serial interface port to 400 MHz; allows less than ±1.5ns pixel clock resolution.
• Laser pixel clock output is synchronized with conditioned beam detect input
• Ideal for laser printer, copier and FAX pixel clock applications
• On-chip PLL with internal loop filter
• On-chip XTAL oscillator frequency reference
• Resettable, programmable counter gives glitch-free clock alignment
• Single 5 volt power supply
• Low power CMOS technology
• Compact 16-pin 0.150" skinny SOIC package
• User re-programmable clock frequency supports zoom and gray scale functions
• Laser pixel clock output is synchronized with conditioned beam detect input
• Ideal for laser printer, copier and FAX pixel clock applications
• On-chip PLL with internal loop filter
• On-chip XTAL oscillator frequency reference
• Resettable, programmable counter gives glitch-free clock alignment
• Single 5 volt power supply
• Low power CMOS technology
• Compact 16-pin 0.150" skinny SOIC package
• User re-programmable clock frequency supports zoom and gray scale functions

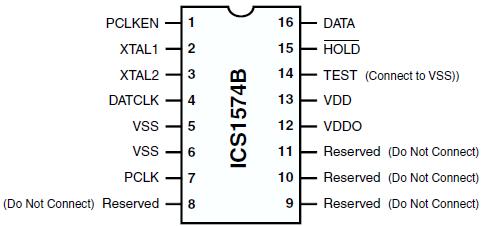

ICS1574B Connection Diagram
ICS1574B
PDF/DataSheet Download
- Datasheet: ICS1574B
- File Size: 191755 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
