Product Details

Description



Features:

· One chip integrated physical layer
· All CMOS, low power design
· ISO/IEC 8802-3 CSMA/CD compliant
· 100Base-FX Half & Full Duplex
· Far end fault detection
· Media Independent Interface (MII)
· Station management interface
· Extended register set including QuickPollTM detailed status monitoring
· Transmit clock synthesis
· Receive clock and data recovery
· Detailed receive error reporting
· Extended Test Modes
· 52-pin MQFP package with 2.0 mil body thickness


Pinout

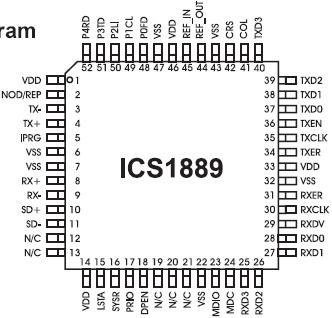

Connection Diagram


Specifications

VDD (measured to VSS) . . . . . . .. . .  . . . . . . . . 7.0 V
Digital Inputs/Outputs . . . VSS - 0.5 V to VDD + 0.5 V
Ambient Operating Temperature .  . - 55 to +125
Storage Temperature . . . .  . . . . . . . -65 to +150
Junction Temperature . . . . . .. . . . . . . . . . . . . . 175
Soldering Temperature . . . . .. . . . . . . . . . . . . . 265
Recommended Operating Conditions Stresses above those listed under Absolute Maximum Ratings above may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS1889 is a fully integrated physical layer device supporting 100 Megabits per second CSMA/CD Fast Ethernet fiber optic applications. It is designed to support the requirements of DTEs (adapter cards), repeaters and switches. It is compliant with the ISO/IEC 8802 Fast Ethernet standard for 100Base-FX. It provides a Media Independent Interface (MII) allowing direct chip-to-chip connection, motherboard-to-daughter board connection or connection via a cable in a similar manner to the AUI approach used with 10Base-Tsystems. A station management interface of the ICS1889 is provided to receive command information and send status information. It transmits and receives NRZI data and interfaces directly to the optical transceiver. It can operate in either half duplex or full duplex.
