ICS1893AF

PHYCEIVER LOW PWR 3.3V 48-SSOP

product image

ICS1893AF Picture
See larger image
SeekIC No. : 003520559 Detail

ICS1893AF: PHYCEIVER LOW PWR 3.3V 48-SSOP

ICS1893AF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS1893AF
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Logic Family : STMPE801 Series: PHYceiver™
Manufacturer: IDT, Integrated Device Technology Inc Type: PHY Transceiver
Number of Drivers/Receivers: - Protocol: MII
Voltage - Supply: 3.14 V ~ 3.47 V Mounting Type: Surface Mount
Package / Case: 48-BSSOP (0.295", 7.50mm Width) Supplier Device Package: 48-SSOP

Description

Mounting Type: Surface Mount
Number of Drivers/Receivers: -
Packaging: Tube
Type: PHY Transceiver
Voltage - Supply: 3.14 V ~ 3.47 V
Protocol: MII
Package / Case: 48-BSSOP (0.295", 7.50mm Width)
Supplier Device Package: 48-SSOP
Series: PHYceiver™
Manufacturer: IDT, Integrated Device Technology Inc


Features:

• Single 3.3V power supply
• Supports category 5 cables with attenuation in excess of 24dB at 100 MHz across a temperature range from - 5 to +85.
• DSP-based baseline wander correction to virtually eliminate killer packets across temperature range of-5to+85
• Low-power, 0.35-micron CMOS (typically 400mW)
• Single-chip, fully integrated PHY provides PCS, PMA,PMD and AUTONEG Sublayers of the IEEE Std.
• 10Base-T and 100Base-TX IEEE 8802-3 compliant
• Clock or crystal supported.
• Media Independent Interface (MII) supported.
• Managed or Unmanaged Applications
• 10M or 100M Half and Full Duplex Modes
• Auto-Negotiation with Next Page. Parallel detection for Legacy products.
• Fully-integrated, DSP-based PMD includes:
- Adaptive equalization and baseline wander correction
- Transmit wave shaping and stream cipher scrambler
- MLT-3 encoder and NRZ/NRZI encoder
• Highly configurable supports:
- Node applications, managed or unmanaged
- 10M or 100M half and full duplex modes
• Loopback mode for Diagnostic Functions
• Small footprint 48-lead 300mil SSOP package.

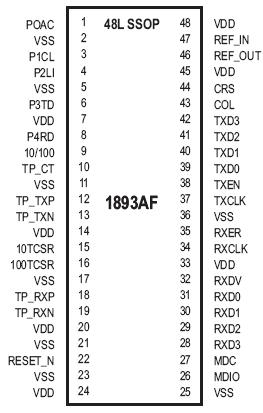

Pinout

Connection Diagram


Parameters:

Technical/Catalog InformationICS1893AF
VendorIDT, Integrated Device Technology Inc
CategoryIntegrated Circuits (ICs)
Number of Drivers/Receivers-
TypePHY Transceiver
Voltage - Supply3.14 V ~ 3.47 V
Package / Case48-SSOP
PackagingTube
ProtocolIEEE 802
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names ICS1893AF
ICS1893AF
