General Description
ICS2008B General Description
The ICS2008B, SMPTE Time Code Receiver / Generator chip, is a VLSI device designed in a low power CMOS process. This device provides the timing coordination for Multimedia sight and sound events. Although it is aimed at a PC Multimedia environment, the ICS2008B is easily integrated into products requiring SMPTE time code generation and/or reception in LTC (Longitudinal Time Code) and/or VITC (Vertical Interval Time Code) formats and MTC (MIDI Time Code) translation.
Taking its input from composite video, S-Video, or an audio track, the ICS2008B can read SMPTE time code in VITC and LTC formats. Time code output formats are LTC and VITC. All are available simultaneously. A UART is provided for the user to support MTC or tape transport control.
The processor interface is compatible with the IBM PC and ISA bus compatible computers and is easily interfaced to other processors and micro-controllers.
The ICS2008B is an improved version of the ICS2008,with additional features and capabilities.
ICS2008B Maximum Ratings
Operating Temperature . . . . . . . . . . . . . . 0 to +70
Storage Temperature . . . . . . . . . . . . 65 to +150
Voltage on any pin to GND . . . . 0.5 V to VDD + 0.5 V
Voltage on VDD to GND . . . . .. . . . . . 0.5 V to +7.0 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . 1.0 watt
Stresses above those listed under Absolute Maximum Ratings above may cause permanent damage to the device. This is a stress rating only. Operating the device at these levels is not recommended, and specifications are not implied.
Storage Temperature . . . . . . . . . . . . 65 to +150
Voltage on any pin to GND . . . . 0.5 V to VDD + 0.5 V
Voltage on VDD to GND . . . . .. . . . . . 0.5 V to +7.0 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . 1.0 watt
Stresses above those listed under Absolute Maximum Ratings above may cause permanent damage to the device. This is a stress rating only. Operating the device at these levels is not recommended, and specifications are not implied.
ICS2008B Features
• Meets SMPTE VITC Specifications
• Meets SMPTE and EBU LTC Specifications
• Time Code Burn-in Window
Programmable position, size and character attributes
• LTC edge rate control
Conforms to EBU Tr and Tf Specifications
• Internal and external sync sources
Genlock to video or house sync inputs
Improved video timing lock during VCR pause and shuttle modes
Internally generated timing from oscillator input
External click input
Internal Timer Allows 1/4 Frame MIDI Time Code Messages
• LTC and VITC Generators
Real Time SMPTE Rates:30 Hz, 29.97 Hz, 25 Hz, 24 Hz
Time Code Modes Drop Frame and Color Frame
VITC can be inserted on two lines from 10-40 (SMPTE specifies lines 10-20)
Jam Sync, freewheeling, error bypass/correction,and plus-one-frame capability
• LTC Receiver
Synchronize bit rates from 1/30th nominal to 80X nominal playback speed.
• VITC Receiver
Reads code from any or all selected scan lines.
VITC search mode, will search through VBI lines until VITC is found.
• New UART frequency of 38.4 K for tape transport control
• Meets SMPTE and EBU LTC Specifications
• Time Code Burn-in Window
Programmable position, size and character attributes
• LTC edge rate control
Conforms to EBU Tr and Tf Specifications
• Internal and external sync sources
Genlock to video or house sync inputs
Improved video timing lock during VCR pause and shuttle modes
Internally generated timing from oscillator input
External click input
Internal Timer Allows 1/4 Frame MIDI Time Code Messages
• LTC and VITC Generators
Real Time SMPTE Rates:30 Hz, 29.97 Hz, 25 Hz, 24 Hz
Time Code Modes Drop Frame and Color Frame
VITC can be inserted on two lines from 10-40 (SMPTE specifies lines 10-20)
Jam Sync, freewheeling, error bypass/correction,and plus-one-frame capability
• LTC Receiver
Synchronize bit rates from 1/30th nominal to 80X nominal playback speed.
• VITC Receiver
Reads code from any or all selected scan lines.
VITC search mode, will search through VBI lines until VITC is found.
• New UART frequency of 38.4 K for tape transport control

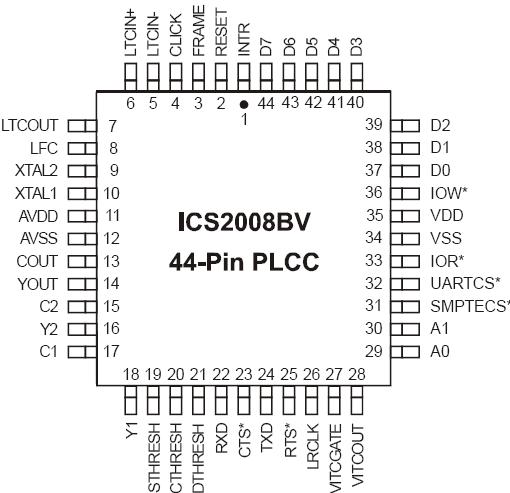

ICS2008B Connection Diagram
ICS2008B
