ICS542M

Series: -
Number of Circuits: 1
Ratio - Input:Output: 1:2
Differential - Input:Output: No/No
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Packaging: Tube
Operating Temperature: 0°C ~ 70°C
Type: Fanout Buffer (Distribution), Divider
Voltage - Supply: 3 V ~ 5.5 V
Manufacturer: IDT, Integrated Device Technology Inc
Input: CMOS
Output: 3-State, CMOS
Frequency - Max: 156MHz


Features:

• Packaged as 8 pin SOIC
• ICS' lowest cost clock divider
• Low skew (500ps) outputs. One is ÷ 2 of other.
• Easy to use with other generators and buffers
• Input clock frequency up to 156 MHz
• Output clock duty cycle of 45/55
• Power Down turns off chip
• Output Enable
• Advanced, low power CMOS process
• Operating voltages of 3.0 to 5.5 V

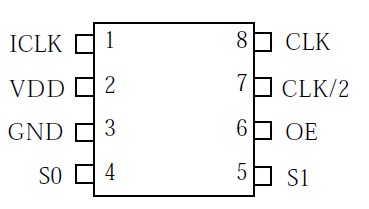

Pinout




Specifications

Parameter	Conditions	Minimum	Maximum	Units
Supply voltage, VDD	Referenced to GND		7	V
Inputs	Referenced to GND	-0.5	VDD+0.5	V
Clock Output	Referenced to GND	-0.5	VDD+0.5	V
Ambient Operating Temperature		0	70
Soldering Temperature	Max of 10 seconds		260
Storage temperature		-65	150

Description

The ICS542M is a cost effective way to produce a high quality clock output divided from a clock input. The chip accepts a clock input up to 156 MHz, and produces a divide by 2, 4, 6, 8, 12, or 16 of the input clock. There are two outputs on the chip, one being a low-skew divide by two of the other. So, for instance, if a 100 MHz clock is used, the ICS542 can produce low skew 50 MHz and 25 MHz clocks, or low skew 25 MHz and 12.5 MHz clocks. The chip has an all-chip power down mode that stops the outputs low, and an OE pin that tri-states the outputs.

The ICS542M is a member of the ICS ClockBlocks™ family of clock building blocks. See the ICS541 and ICS543 for other clock dividers, and the ICS501, 502, 511, 512 and 525 for clock multipliers.

Parameters:

Technical/Catalog Information	ICS542M
Vendor	IDT, Integrated Device Technology Inc
Category	Integrated Circuits (ICs)
Type	Clock Divider
Voltage - Supply	3 V ~ 5.5 V
Number of Outputs	2
Input	CMOS
Output	CMOS
Frequency-Max	156MHz
Package / Case	8-SOIC
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ICS542M ICS542M
