Product Details

Description

Features:

• Extremely low-skew outputs (50 ps maximum)
• Packaged in 8-pin SOIC
• Operating voltages of 2.5 to 5.0 V
• Low-power CMOS technology
• Industrial temperature range
• Available in Pb (lead) free package

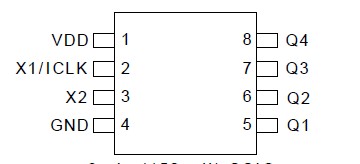

Pinout

Connection Diagram

Specifications

Supply Voltage, VDD.......................... 7 V
Output Enable and All Outputs .........-0.5 V to VDD+0.5 V
ICLK ..................................................-0.5 V to 5.5 V
Ambient Operating Temperature .......-40 to +85
Storage Temperature ........................-65 to +150
Junction Temperature ........................125
Soldering Temperature .......................260

Description

The ICS556-04 is a low-skew, crystal input compatible clock buffer with oscillator. This device offers the lowest skew.

See the ICS552-02 for a 1-to-8 low skew buffer. For more than eight outputs see the MK74CBxxx Buffalo^TMseries of clock drivers.

ICS of the ICS556-04 makes many non-PLL and PLL-based low-skew output devices. Contact ICS for all of your clocking needs.
