ICS8343I

Features: • 16 LVCMOS outputs• Output frequency up to 200MHz• 250ps output skew•· 700ps part to part• CMOS compatible clock input at 5V, LVTTL and LVCMOS compatible at 3.3V and 2.5V• LVTTL output enable inputs• Dual output enable inputs facilitates 1-to-16...

product image

ICS8343I Picture
See larger image
SeekIC No. : 004370928 Detail

ICS8343I: Features: • 16 LVCMOS outputs• Output frequency up to 200MHz• 250ps output skew•· 700ps part to part• CMOS compatible clock input at 5V, LVTTL and LVCMOS compatible at ...

ICS8343I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS8343I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16 LVCMOS outputs
• Output frequency up to 200MHz
• 250ps output skew
•· 700ps part to part
• CMOS compatible clock input at 5V, LVTTL and LVCMOS compatible at 3.3V and 2.5V
• LVTTL output enable inputs
• Dual output enable inputs facilitates 1-to-16 or 1-to-8 input to output modes
• 5.0V, 3.3V, 2.5V or mixed 3.3V, 2.5V from -40°C to 85°C ambient operating temperature
• 32 lead low-profile QFP(LQFP), 7mm x 7mm x 1.4mm package body, 0.8mm package lead pitch

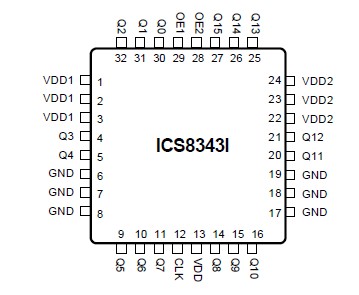

Pinout

Connection Diagram


Specifications

Supply Voltage .................................................7V
Inputs ....................................-0.5V to VDD+0.5 V
Outputs................................... -0.5V to VDD+0.5V
Ambient Operating Temperature.. -40°C to 85°C
Storage Temperature................. -65°C to 150°C


Description

The ICS8343I is a low skew, 1-to-16 Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The ICS8343I is at 5.0V, 3.3V, 2.5V and mixed 3.3V input and 2.5V supply modes over the commercial temperature range. Guaranteed output and part-topart skew characteristics make the ICS8343I ideal for those clock distribution applications demanding well defined performance and repeatability.
