Features:

• Six differential LVHSTL outputs
• Selectable crystal input interface or TEST_CLK input
• TEST_CLK accepts the following input types: LVCMOS, LVTTL
• Output frequency range: 15.625MHz to 500MHz
• VCO range: 250MHz to 500MHz
• Serial interface for programming feedback and output dividers
• Supports SSC, -0.5% downspread. Can be enabled through use of the serial programming interface.
• Output skew: 100ps (maximum)
• Cycle-to-cycle jitter: 50ps (maximum)
• 2.5V core/1.8V output supply voltage
• 0°C to 70°C ambient operating temperature
• Industrial temperature information available upon request
• Available in both standard and lead-free RoHS-compliant packages


Pinout

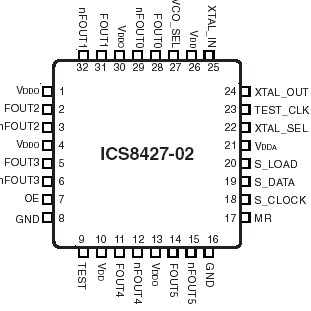

Connection Diagram


Specifications

Supply Voltage, VDD
Inputs, VI
Outputs, IO
Continuous Current
Surge Current
Package Thermal Impedance, JA
for 32 Lead LQFP
for 32 Lead VFQFN
Storage Temperature, TSTG		 4.6V
-0.5V to VDD + 0.5V

50mA
100mA

47.9°C/W (0 lfpm)
34.8°C/W (0 lfpm)
-65°C to 150°C
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS8427-02 is a general purpose, six LVHSTL output high frequency synthesizer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The ICS8427-02 can support a very wide output frequency range of 15.625MHz to 500MHz. The device powers up at a default output frequency of 200MHz with a 16.6667MHz crystal interface, and the frequency can then be changed using the serial programming interface to change the M feedback divider and N output divider. Frequency steps as small as 125kHz can be achieved using a 16.6667MHz crystal and the output divider set for ÷16. The low jitter and frequency range of the ICS8427-02 make it an ideal clock generator for most clock tree applications. HiPerClockS™ ICS
