ICS8430I-61

Features:


• Dual differential 3.3V LVPECL outputs
• Selectable crystal oscillator interfaceor LVCMOS/LVTTL TEST_CLK
• Output frequency range: 20.83MHz to 500MHz
• Crystal input frequency range: 14MHz to 27MHz
• VCO range: 250MHz to 500MHz
• Parallel or serial interface for programming counterand output dividers
• RMS period jitter: 6ps (maximum)
• Cycle-to-cycle jitter: 30ps (maximum)
• Supply voltage modes:3.3/3.3/3.33.3/3.3/2.5
• -40°C to 85°ambient operating temperature

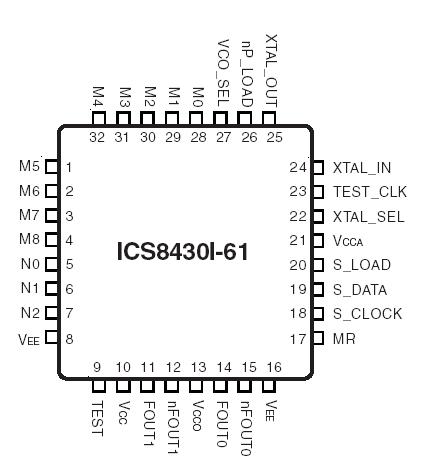

Pinout




Specifications

Supply Voltage, _VCC ................................................4.6V
Inputs, V_I........................................ -0.5V to V_CC + 0.5V
Outputs, I_O
Continuous Current............................................. 50mA
Surge Current 100mA
Package Thermal Impedance,.... _JA 47.9°C/W (0 lfpm)
Storage Temperature, T_STG ................-65°C to 150°C


Description

The ICS8430I-61 is a general purpose, dual output Crystal-to-3.3V Differential LVPECL High Frequency Synthesizer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The ICS8430I-61 has a selectable TEST_CLK or crystal inputs. The VCO operates at a frequency range of 250MHz to 500MHz. The VCO frequency is programmed in steps equal to the value of the input reference or crystal frequency. The VCO and output frequency can be programmed using the serial or parallel interfaces to the configuration logic. Frequency steps as small as 1MHz can be achieved using a 16MHz crystal or TEST_CLK.
