ICS85222

Features:

• 2 differential LVHSTL outputs
• Selectable CLK0, CLK1 LVCMOS clock inputs
• CLK0 and CLK1 can accept the following input levels: LVCMOS or LVTTL
• Maximum output frequency: 350MHz
• Part-to-part skew: 350ps (maximum)
• Propagation delay: 1.3ns (maximum)
• V_OH: 1.2V (maximum)
• 3.3V and 2.5V operating supply
• 0°C to 70°C ambient operating temperature
• Industrial temperature information available upon request
• Lead-Free package fully RoHS compliant

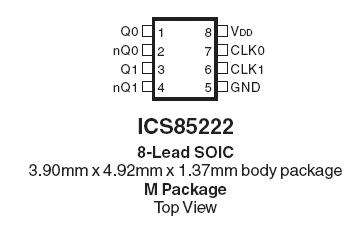

Pinout




Specifications

Supply Voltage, V_DD ..............................................................4.6V
Inputs, V_I ......................................................-0.5V to VDD + 0.5V
Outputs, I_O
     Continuous Current ........................................................50mA
      Surge Current ..............................................................100mA
Package Thermal Impedance, JA................. 112.7°C/W (0 lfpm)
Storage Temperature, T_STG ..............................-65°C to 150°C


Description

The ICS85222 is a Dual LVCMOS / LVTTL-to- Differential LVHSTL Translator and a member of the HiPerClocks™ family of High Performance Clock Solutions from ICS. The ICS85222 has two single ended clock inputs. The single ended clock input accepts LVCMOS or LVTTL input levels and translates them to LVHSTL levels. The small outline 8-pin SOIC package makes this device ideal for applications where space, high performance and low power are important. For optimum performance of the ICS85222, both output pairs need to be terminated, even if one output pair is unused.
