ICS85356AGI

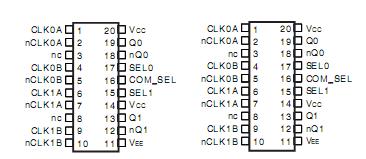

The ICS85356AGI is a dual 2:1 Differential-to-LVPECL Multiplexer and is a member of the HiPerClock S^TM family of High Performance Clock Solutions from ICS. The device has both common select and indi-vidual select inputs. When COM_SEL is logic High,the CLKxx input pairs will be passed to the output. When COM_SEL is logic Low, the output is determined by the setting of the SEL0 pin for channel 0 and the SEL1 pin for Channel 1.

The differential input of the ICS85356AGI has a common mode range that can accept most differential input types such as LVPECL, LVDS, LVHSTL,SSTL, and HCSL. The ICS85356I can therefore be used as a differential translator to translate almost any differential input type to LVPECL. It can also be used in ECL mode by setting V_CC=0Vand V_EE to -3.0V to - 3.8V.

The ICS85356AGI adds negligible jitter to the input clock and can operate at high frequencies in excess of 900MHz thus making it ideal for use in demanding applications such as SONET, Fibre Channel, 1 Gigabit/10 Gigabit Ethernet.
