Product Details

Description



Features:

• Packaged in 16 pin narrow SOIC
• Zero input-output delay
• Four 1X outputs plus four half-X outputs
• Output to output skew is less than 250 ps
• Output clocks up to 160 MHz at 3.3 V
• Ability to generate 2X the input
• Full CMOS outputs with 18 mA output drive capability at TTL levels at 3.3 V
• Spread Smart™ technology works with spread spectrum clock generators
• Advanced, low power, sub-micron CMOS process
• 3.0 to 5.5 V operating voltage

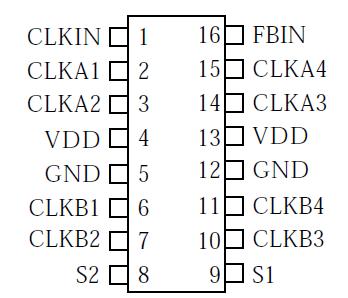

Pinout

Connection Diagram


Specifications

Parameter Conditions
Minimum
Maximum
Units
Supply voltage, VDD Referenced to GND
-0.5
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5
V
Electrostatic Discharge MIL-STD-883
2000
V
Ambient Operating Temperature
0
70
°C
Soldering Temperature Max of 10 seconds
260
°C
Junction temperature
150
°C
Storage temperature
-65
150
°C



Description

The ICS9112-18 is a low jitter, low-skew, high performance PLL based zero delay buffer for high speed applications. Based on ICS's proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides eight low skew outputs at speeds up to 160 MHz at 3.3 V. The ICS9112-18 includes a bank of four outputs running at 1X, and another four outputs running at 1/2X. In the zero delay mode, the rising edge of the input clock is aligned with the rising edges of all eight outputs. Compared to competitive CMOS devices, the ICS9112-18 has the lowest jitter of all.

ICS manufactures the largest variety of clock generators and buffers, and is the largest clock supplier in the world.
