ICS9112-27

Supply voltage range V_DD......................... -0.5V to 4.3 V
Input voltage rangeVI (see notes 1 & 2) .............. -0.5V to V_DD + 0.5V
Output voltage range V_O (see notes 1 & 2) .............-0.5V to V_DD + 0.5V
Input clamp current IIK (V_I< 0 or V_I >V_DD)  ................... ±50 mA
Output clamp current I_OK (V_O< 0 or V_O)..................... ±50 mA
Continuous total output current, I_O (V_O = 0 to V_DD) ...............±50 mA
Package thermal impedance Ø_JA (see note 3): PW package .........230.5°C/W
Storage temperature rante, T_stg .................... -65°C to 150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Notes:
1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The package thermal impedance is calculated in accordance with JESD 51.

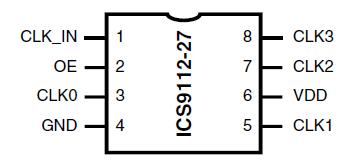

The ICS9112-27 is a high performance, low skew, low jitter PCI / PCI-X clock driver. It is designed to distribute high speed signals in PCI / PCI-X applications operating at speeds from 0 to 140 MHz.

The ICS9112-27 is characterized for operation from -40°C to 85°C for automotive and industrial applications
