ICS9112-28

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V
Logic Inputs . . . . . . . . . . . GND 0.5 V to V_DD +0.5 V
Ambient Operating Temperature . .  . . 0°C to +70°C
Storage Temperature . . . . . . .  . . 65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in theoperational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.

The ICS9112-28 is a high performance, low skew, low jitter clock driver. It is designed to distribute high speed clocks in PC systems operating at speeds from 0 to 133 MHz.

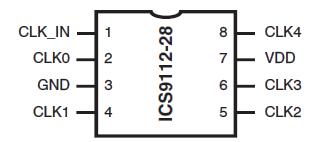

The ICS9112-28 comes in an eight pin 150 mil SOIC package. It has four output clocks.
