ICS9120-11

Features: • Generates 46.6 MHz and 33.868 MHz clocks• Buffered REFCLK output• 0.20% frequency accuracy• 100ps one sigma jitter maintains 16-bit performance• Output rise/fall times less than 2.5ns• On-chip loop filter components• 3.0V - 5.5V supply range...

product image

ICS9120-11 Picture
See larger image
SeekIC No. : 004371135 Detail

ICS9120-11: Features: • Generates 46.6 MHz and 33.868 MHz clocks• Buffered REFCLK output• 0.20% frequency accuracy• 100ps one sigma jitter maintains 16-bit performance• Output rise...

ICS9120-11 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9120-11
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Generates 46.6 MHz and 33.868 MHz clocks
• Buffered REFCLK output
• 0.20% frequency accuracy
• 100ps one sigma jitter maintains 16-bit performance
• Output rise/fall times less than 2.5ns
• On-chip loop filter components
• 3.0V - 5.5V supply range
• 8-pin, 150-mil SOIC package Advance Information


Pinout

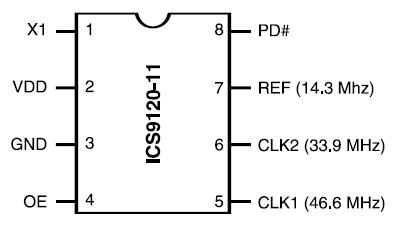

Connection Diagram


Specifications

AVDD, VDD referenced to GND ................................7V
Operating temperature under bias   ...................... 0°C to +70°C
Storage temperature  ............................-65°C to +150°C
Voltage on I/O pins referenced to GND  ................GND -0.5V to VDD +0.5V
Power dissipation   ..................................0.5 Watts

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional peration of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS9120-11 is a high performance frequency generator. The ICS9120-11 provides high accuracy; low jitter PLLs meet the 0.20% frequency tolerance and -96dB signal-tonoise ratios. Fast output clock edge rates minimize board induced jitter.

The ICS9120-11 operates over the entire 3.0 - 5.5V range and provides power-down to minimize energy consumption.
