Features: • Generates 33.8688 MHz or 42.83 MHz decode clocks plus the 20 and 40 MHz fixed clocks• Single 8.4672 MHz crystal or system clock reference• 200ps one sigma jitter maintains 16-bit performance• Output rise/fall times less than 2.0ns• On-chip loop filter comp...

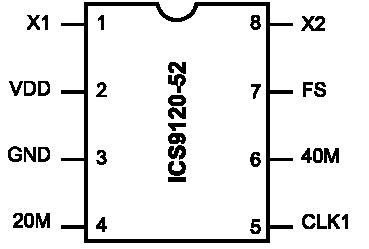

ICS9120-52: Features: • Generates 33.8688 MHz or 42.83 MHz decode clocks plus the 20 and 40 MHz fixed clocks• Single 8.4672 MHz crystal or system clock reference• 200ps one sigma jitter mainta...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
AVDD, VDD referenced to GND .............................................................7V
Operating temperature under bias ......................................0 to +70
Storage temperature .................................................... -65 to +150
Voltage on I/O pins referenced to GND ............ GND -0.5V to VDD +0.5V
Power dissipation ................................................................... 0.5 Watts
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
The ICS9120-52 is a high performance frequency generator designed to support digital compact disk drive systems. It offers all clock frequencies required for the servo and decoder sections of these devices. These frequencies are synthesized from a single 16.9344 MHz on-chip oscillator.
High accuracy, low jitter PLLs meet the 150 ppm frequency tolerance required by these systems. Fast output clock edge rates minimize board induced jitter.
Unlike competitive devices, the ICS9120-52 operates over the entire 3.0-5.5V range.
