Features: • Single 25.00 MHz crystal or system clock reference• 100ps one sigma jitter maintains 16-bit performance• Output rise/fall times less than 2.0ns• On-chip loop filter components• 3.3V-5V supply range• 8-pin, 150-mil SOICApplication• Specifically ...
ICS9120-56: Features: • Single 25.00 MHz crystal or system clock reference• 100ps one sigma jitter maintains 16-bit performance• Output rise/fall times less than 2.0ns• On-chip loop filt...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Voltage .................................................................................... 7.0 V
Logic Inputs ...................................................... GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature .........................................0°C to +70°C
Storage Temperature ...................................................65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.

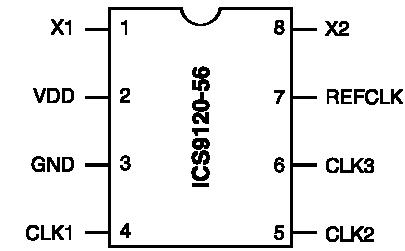

The ICS9120-56 is a high performance frequency generator designed to support hard disk drive and EtherNet systems. It offers all clock frequencies required for the servo and decoder sections of these devices. These frequencies are synthesized from a single 25.00 MHz on-chip oscillator.
High accuracy, low jitter PLLs meet the 100 ppm frequency tolerance required by these systems. Fast output clock edge rates minimize board induced jitter.
