ICS9147-01

Features:

• Four copies of CPU clock
• Six SDRAM (3.3 V TTL), usable as AGP clocks
• Seven copies of BUS clock (synchronous with CPU
   clock/2 or CPU/2.5 for 75 and 83.3 MHz CPU)
• CPU clocks to BUS clocks skew 1-4ns (CPU early)
• One IOAPIC clock @14.31818 MHz
• Two copies of Ref. clock @14.31818 MHz
• One each 48/ 24 MHz (3.3 V TTL)
• This device is configured into the Mobile mode for
   power management of Intel 430 TX
• Ref. 14.31818 MHz Xtal oscillator input
• Separate 66/60 MHz select pin (LSB of select pins)
• Separate VDD2 for four CPU and single IOAPIC output
   buffers to allow 2.5V output (or Std. Vdd)
• Power Management Control Input pins
• 3.0V 3.7V supply range w/2.5V compatible outputs
• 48-pin SSOP package

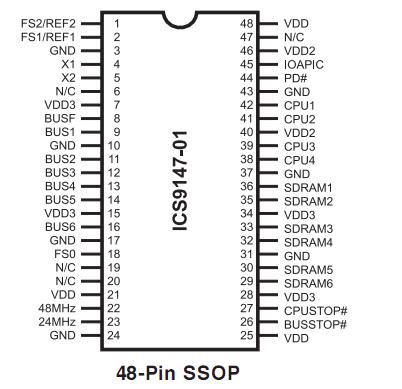

Pinout




Specifications

Supply  Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .                       7.0 V
Logic  Inputs . . . . . . . . . . . . . . . . . . . . . .GND 0.5 V to  VDD +0.5 V
Ambient  Operating  Temperature . . . . . . . . . .        0°C  to  +70°C
Storage  Temperature . . . . . . . . . . . . . . . . . . . . 65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.


Description

The  ICS9147-01 generates all clocks required for high speed RISC or CISC microprocessor systems such as Intel PentiumPro. Two bidirectional I/O pins (FS1,FS2) are latched at power-on to the functionality table, with FS0 selectable in real-time to toggle between conditions. The inputs provide for tristate and test mode conditions to aid in system level testing. These multiplying factors can be customized for specific applications. Glitch-free stop clockcontrols are provided for  CPU clocks and BUS clocks.

High drive BUS and SDRAM outputs of the ICS9147-01 typically provide greater than 1 V/ns slew rate into 30pF loads. CPU outputs typically provide better than 1V/ns slew rate into 20 pF loads while maintaining 50 ±5% duty cycle. The REF clock outputs typically provide better than 0.5V/ns slew rates. Seperate buffers supply pins VDD2 allow for 3.3V or reduced voltage swing (from 2.9 to 2.5V) for CPU (1:4) and IOAPIC outputs.
