ICS9158-04

Features: · 11 skew-free, high drive CPU/BUS clocks· Up to 66 MHz at 3.3V· ±250ps skew between all outputs· Outputs can drive up to 30pF load and 25mA· 50±10% duty cycle· Compatible with 486 and Pentium CPUs· Selectable 5/6 or 6/5 CPU/BUS output ratio· On-chip loop filter components· 3.0V - 5.5V s...

product image

ICS9158-04 Picture
See larger image
SeekIC No. : 004371187 Detail

ICS9158-04: Features: · 11 skew-free, high drive CPU/BUS clocks· Up to 66 MHz at 3.3V· ±250ps skew between all outputs· Outputs can drive up to 30pF load and 25mA· 50±10% duty cycle· Compatible with 486 and Pen...

ICS9158-04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9158-04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 11 skew-free, high drive CPU/BUS clocks
· Up to 66 MHz at 3.3V
· ±250ps skew between all outputs
· Outputs can drive up to 30pF load and 25mA
· 50±10% duty cycle
· Compatible with 486 and Pentium CPUs
· Selectable 5/6 or 6/5 CPU/BUS output ratio
· On-chip loop filter components
· 3.0V - 5.5V supply range
· 24-pin SOIC package


Application

· Ideal for RISC or CISC systems such as 486, Pentium, PowerPCTM etc., requiring multiple CPU and BUS clocks.


Pinout

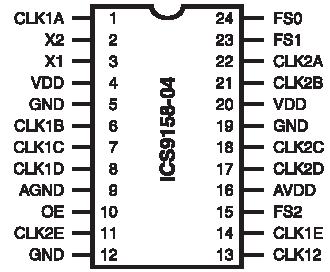

Connection Diagram


Description

The ICS9158-04 is a low cost frequency generator designed specifically for desktop and notebook PC applications. Up to six copies of the CPU clock are available, and five or six copies of the BUS clock are available depending on the status of the frequency select pins, which eliminates the need for an external buffer.

Each high drive (25mA) output is capable of driving a 30pF load and has a typical duty cycle of 50/50. The clock outputs are skew controlled to within ±250ps.

The ICS9158-04 makes a gradual transition between frequencies, so that it meets the Intel cycle-to-cycle timing specification for 486 and Pentiumô systems.
