Part Number: ICS9169C-41
Description: The ICS9169C-41 is a Clock Synthesize/Driver chip for Pentium, PentiumPro or Cyrix 68x86 based motherb...
- Table of contents:
ICS9169C-41
-
Suppliers
DataSheet
General Description
ICS9169C-41 General Description
The ICS9169C-41 is a Clock Synthesize/Driver chip for Pentium, PentiumPro or Cyrix 68x86 based motherboards using SDRAM.
Features include four dual purpose I/O pins which provide extra CPU clocks and enable the part to be packaged in a low-cost 34-pin SSOP package. These four pins latch the select inputs at the internal Power-On Reset. Additionally, the device meets the Pentium and PentiumPro power-up stabilization, which requires that CPU and PCI clocks be stable within 2ms after power-up.
The ICS9169C-41 clock outputs are designed for low EMI emissions. Controlled rise and fall times, unique output driver circuits and innovative circuit layout techniques enable the ICS9169C-41 to have lower EMI than other clock devices.
The ICS9169C-41 accepts a 14.318MHz reference crystal or clock as its input and runs from a 3.3V supply.
ICS9169C-41 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Note 1: Parameter is guaranteed by design and characterization. Not 100% tested in production. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
ICS9169C-41 Features
• 12 selectable CPU/SDRAM/AGP clocks up to 75 MHz
• Six PCI clocks, synchronous or asynchronous mode, pin
selectable by Bus Select input (pin 19)
• One USB clock at 48MHz, meets Intel jitter, accuracy, as
well as rise and fall time requirements
• One I/O clock at 24MHz
• Two Ref. Clocks at 14.318MHz
• CPU clocks to PCI clock skew of 1-4ns (CPU early)
• Low CPU and PCI clock jitter <200ps
• Low skew outputs, skew window 250ps for CPU clocks and for PCI clocks
• Improved output drivers are designed for low EMI
• Test Mode
• 3.3V ±10% operation
• Space saving and low cost 34-pin SSOP package
• Six PCI clocks, synchronous or asynchronous mode, pin
selectable by Bus Select input (pin 19)
• One USB clock at 48MHz, meets Intel jitter, accuracy, as
well as rise and fall time requirements
• One I/O clock at 24MHz
• Two Ref. Clocks at 14.318MHz
• CPU clocks to PCI clock skew of 1-4ns (CPU early)
• Low CPU and PCI clock jitter <200ps
• Low skew outputs, skew window 250ps for CPU clocks and for PCI clocks
• Improved output drivers are designed for low EMI
• Test Mode
• 3.3V ±10% operation
• Space saving and low cost 34-pin SSOP package

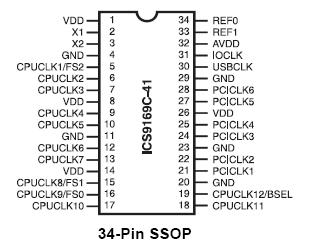

ICS9169C-41 Connection Diagram
ICS9169C-41
