ICS9250-38
-
Suppliers
DataSheet
General Description
ICS9250-38 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Logic Inputs . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . 0°C to +70°C
Case Temperature . . . . . . . . . . . . . . . . . . . . . . 115°C
Storage Temperature . . . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
ICS9250-38 Features
• Almador Chipset has a DLL driving the clock buffer path for the 3 buffer path 66.6 MHz outputs, 66Buf(0:2).
• Almador board level designs MUST use pin 22, 66Buf_1, as the feedback connection from the clock buffer path to the Almador (GMCH) chipset.
• Supports spread spectrum modulation, down spread 0 to -0.5%.
• Efficient power management scheme through PD#, CPU_STOP# and PCI_STOP#.
• Almador board level designs MUST use pin 22, 66Buf_1, as the feedback connection from the clock buffer path to the Almador (GMCH) chipset.
• Supports spread spectrum modulation, down spread 0 to -0.5%.
• Efficient power management scheme through PD#, CPU_STOP# and PCI_STOP#.

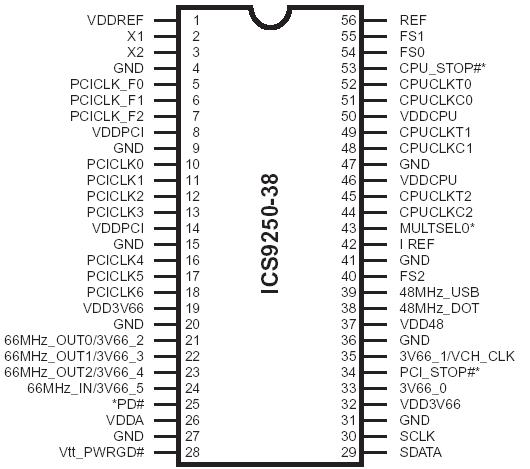

ICS9250-38 Connection Diagram
ICS9250-38
PDF/DataSheet Download
- Datasheet: ICS9250-38
- File Size: 139445 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
