Purchase ICS93716, In-stock ICS93716 From SeekIC.
- Table of contents:
ICS93716
-
Suppliers
DataSheet
General Description
ICS93716 Maximum Ratings
Supply Voltage (VDD & AVDD). . . . . . . . . . . -0.5V to 4.6V
Logic Inputs . . . . . . . . . . . . . . GND - 0.5V to VDD + 0.5V
Ambient Operating Temperature . . . . . . 0°C to +85°C
Storage Temperature . . . . . . . . . . . . .-65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
ICS93716 Features
• Low skew, low jitter PLL clock driver
• I2C for functional and output control
• Feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs
• I2C for functional and output control
• Feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs

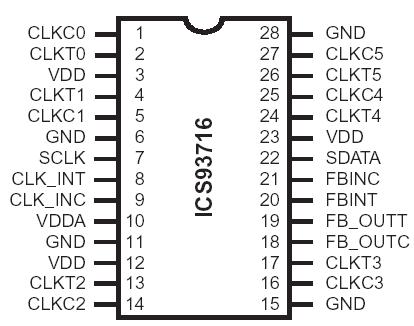

ICS93716 Connection Diagram
ICS93716
