ICS93V850

Features: • Low skew, low jitter PLL clock driver• I2C for functional and output control• Feedback pins for input to output synchronization• Spread Spectrum tolerant inputs• With bypass mode mux• Operating frequency 60 to 140 MHzPinoutSpecificationsSupply Voltag...

product image

ICS93V850 Picture
See larger image
SeekIC No. : 004371293 Detail

ICS93V850: Features: • Low skew, low jitter PLL clock driver• I2C for functional and output control• Feedback pins for input to output synchronization• Spread Spectrum tolerant inputs&#...

ICS93V850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS93V850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low skew, low jitter PLL clock driver
• I2C for functional and output control
• Feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs
• With bypass mode mux
• Operating frequency 60 to 140 MHz


Pinout

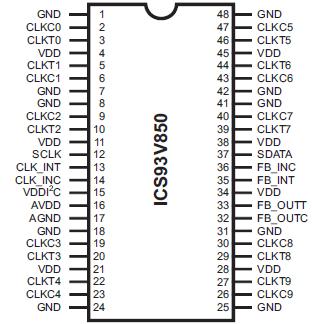

Connection Diagram


Specifications

Supply Voltage: (VDD & AVDD) . . . . . . . . . . . . . . . ....-.......0.5V to 3.6V
                                 (VDDI) . . . . . . . . . . . . . . . . . . . .......-0.5V to 4.6V
Logic Inputs: VI (except SCLK and SDATA) . . . . . 0.5 V to VDD +0.5 V
VI (SCLK and SDATA)  . . . . . . . . . ...................0.5 V to VDDI2C +0.5 V
Logic Outputs: VO (except SDATA) . . . . . . . . . ....0.5 V to VDD +0.5 V
VO (SDATA) . . . . . . . . . . . . . . . ................... ..0.5 V to VDDI2C +0.5 V
Input clamp current: IIK (VI < 0 or VI > VDD) . . . . ................+/- 50mA
Output clamp current: IOK (VO < 0 or VO > VDD) ..................+/- 50mA
Continuous output current: IO (VO = 0 to VDD) . ................. +/- 50mA
Package thermal impedance, theta JA: DGG package............ +89°C/W
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These
ratings are stress specifications only and functional operation of the device at these or any other conditions above
those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect product reliability.
