Part Number: ICS952302









Description: Spread spectrum may be enabled through SMBus programming. Spread spectrum typically reduces system EMI...


Urgent Purchase

ICS952302 General Description


Spread spectrum may be enabled through SMBus programming. Spread spectrum typically reduces system EMI by 8dB to 10dB. This simplifies EMI qualification without resorting to board design iterations or costly shielding. The ICS952302 employs a proprietary closed loop design, which tightly controls the percentage of spreading over process and temperature variations.

ICS952302 Maximum Ratings

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Logic Inputs . . . .. . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperat  . . . . . . 0 to +70
Case Temperature . . . . . . . . . . . . . . . . . . . . 115
Storage Temperature . . . . . . .. . . 65to +150

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.

ICS952302 Features

• Support I2C Index read/write and block read/write operations.
• Uses external 14.318MHz referience input or XTAL.
• Full Load Power consumption reduced >10% compared to reference device
• Power management via SMBus

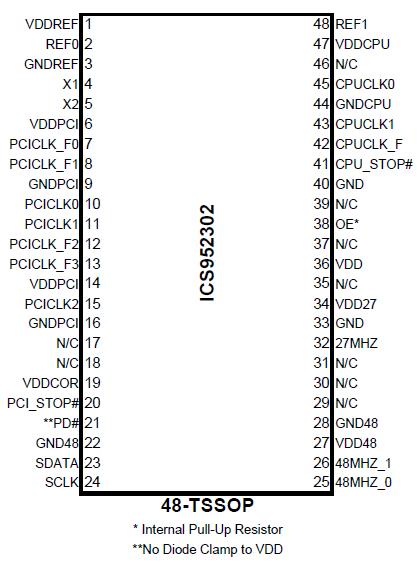

ICS952302 Connection Diagram

ICS952302 Connection Diagram

ICS952302 datasheet

ICS952302
PDF/DataSheet Download

  • Datasheet: ICS952302
  • File Size: 131151 KB
  • Manufacturer: ICST [Integrated Circuit Systems]
  • Click here to Download
