Features:

• 2 - 0.7V current-mode differential CPU pairs
• 7 - 0.7V current-mode differential SRC pair for SATA and PCI-E
• 1 - 0.7V current-mode differential CPU/SRC selectable pair
• 4 - PCI (33MHz)
• 2 - PCICLK_F, (33MHz) free-running
• 1 - USB, 48MHz
• 1 - DOT, 96MHz, 0.7V current differential pair
• 1 - REF, 14.318MHz
• Supports tight ppm accuracy clocks for Serial-ATA and PCI-Express
• Supports spread spectrum modulation, 0 to -0.5% down spread
• Supports CPU clocks up to 400MHz
• Uses external 14.318MHz crystal, external crystal load caps are required for frequency tuning
• Supports undriven differential CPU, SRC pair in PD# for power management.


Application

CK410M clock, Intel Yellow Cover part


Pinout

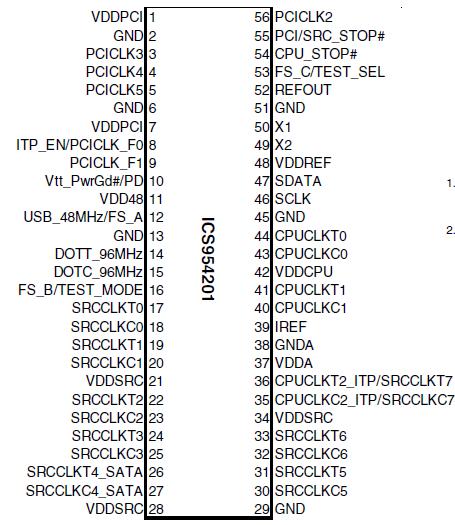

Connection Diagram


Specifications

Symbol Parameter Min Max Units
VDD_A 3.3V Core Supply Voltage   VDD + 0.5V V
VDD_In 3.3V Logic Input Supply Voltage GND - 0.5 VDD + 0.5V V
Ts Storage Temperature -65 150
Tambient Ambient Operating Temp 0 70
Tcase Case Temperature   115
ESD prot Input ESD protection
human body model		 2000   V



Description

ICS954201 is a CK410M Yellow Cover clock synthesizer. ICS954201 provides a single-chip solution for mobile systems built with Intel P4-M processors and Intel mobile chipsets. ICS954201 is driven with a 14.318MHz crystal and generates CPU outputs up to 400MHz. It provides the tight ppm accuracy required by Serial ATA and PCI-Express.
