Purchase ICS954204, In-stock ICS954204 From SeekIC.
Part Number: ICS954204
Description: ICS954204 is a CK410M Compliant clock synthesizer. ICS954204 provides a single-chip solution for mobil...
- Table of contents:
ICS954204
-
Suppliers
DataSheet
General Description
ICS954204 General Description
ICS954204 is a CK410M Compliant clock synthesizer. ICS954204 provides a single-chip solution for mobile systems built with Intel P4-M processors and Intel mobile chipsets. ICS954204 is driven with a 14.318MHz crystal and generates CPU outputs up to 400MHz. It provides the tight ppm accuracy required by Serial ATA and PCI-Express.
ICS954204 Maximum Ratings
| Symbol | Parameter | Min | Max | Units |
| VDD_A | 3.3V Core Supply Voltage | VDD + 0.5V | V | |
| VDD_In | 3.3V Logic Input Supply Voltage | GND - 0.5 | VDD + 0.5V | V |
| Ts | Storage Temperature | -65 | 150 | |
| Tambient | Ambient Operating Temp | 0 | 70 | |
| Tcase | Case Temperature | 115 | ||
| ESD prot | Input ESD protection human body model |
2000 | V |
ICS954204 Features
• 2 - 0.7V current-mode differential CPU pairs
• 5 - 0.7V current-mode differential SRC pair for SATA and PCI-E
• 1 - 0.7V current-mode differential CPU/SRC selectable pair
• 4 - PCI (33MHz)
• 2 - PCICLK_F, (33MHz) free-running
• 1 - USB, 48MHz
• 1 - DOT, 96MHz, 0.7V current differential pair
• 1 - REF, 14.318MHz
• 1 - 0.7V current-mode differential LCD/SRC selectable pair.
• 5 - 0.7V current-mode differential SRC pair for SATA and PCI-E
• 1 - 0.7V current-mode differential CPU/SRC selectable pair
• 4 - PCI (33MHz)
• 2 - PCICLK_F, (33MHz) free-running
• 1 - USB, 48MHz
• 1 - DOT, 96MHz, 0.7V current differential pair
• 1 - REF, 14.318MHz
• 1 - 0.7V current-mode differential LCD/SRC selectable pair.
ICS954204 Typical Application
CK410M Compliant Main Clock with Integrated LCD Spread Spectrum Clock.

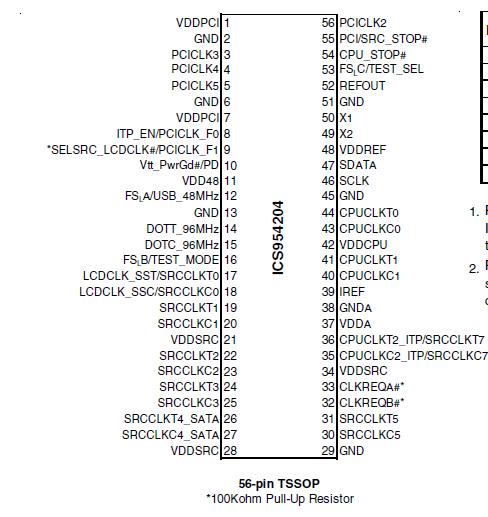

ICS954204 Connection Diagram
ICS954204
